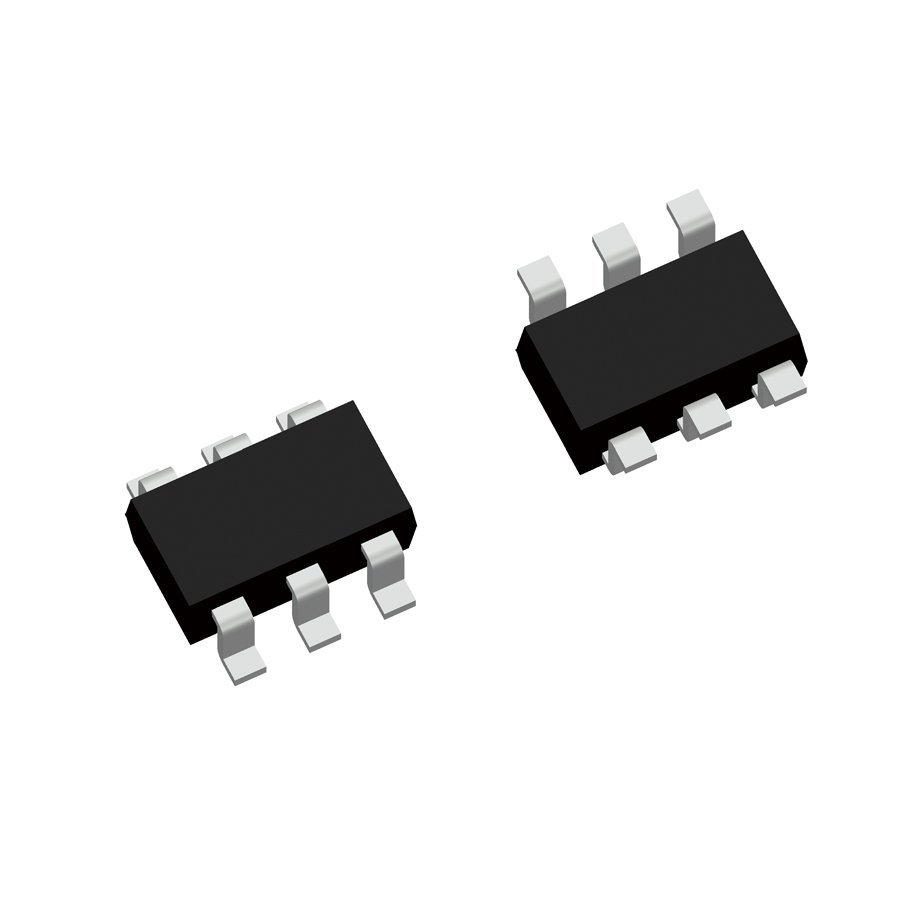

MOT8205SA6
Status：
Package Type：
Category：
Item Description：
Datasheet：
Product Attributes
| Category | Small Signal Mosfet |
| Supplier Device Package | SOT-23A-6L |
| VDss[V](min) | 20 |
| ID[A](25℃) | 6 |
| VGS(th)[V](max) | 1.5 |
| Rds(on) [ mohm] at Vgs=10V（TYP) | 20 |
| Rds(on) [ mohm] at Vgs=10V（MAX) | 25 |
| Rds(on) [ mohm] at Vgs=4.5V（TYP) | 27 |
| Rds(on) [ mohm] at Vgs=4.5V（MAX) | 35 |
| Rds(on) [ mohm] at Vgs=2.5V（TYP) | |
| Rds(on) [ mohm] at Vgs=2.5V（MAX) | |
| Qg [nC] at 10V Typ | 8.4 |
| Qgs [nC] Typ | 1 |
| Qgd [nC] Typ | 1.8 |
| Configuration | N+N |
| Package Type | Tape & Reel (TR) |
| Technology | MOSFET (Metal Oxide) |
| Mounting Type | Surface Mount |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| FET Type | N-Channel |
| Rds On (Max) @ Id, Vgs | 25mOhm @ 6A, 4.5V |
| Vgs(th) (Max) @ Id | 1.5V @ 250µA |
| Gate Charge (Qg) (Max) @ Vgs | 8.4 nC @ 4.5 V |
| Vgs (Max) | ±8V |
| Input Capacitance (Ciss) (Max) @ Vds | 370 pF @ 20 V |
| Power Dissipation (Max) | 1.14W |
Product Description
MOT8205SA6 is a 20V N+N dual MOSFET with an ID current of 6A. It is a very commonly used MOS product on the market. It has the characteristics of small size, light weight, stability and reliability, low on-state internal resistance and high current carrying capacity, and low price. It is widely used in electronic cigarettes, BMS protection boards, and LED drive circuits, and is particularly suitable for high performance, miniaturization and low power consumption.
Documents and Media
Datasheet
Product Application Areas
Suitable for electronic cigarettes, electric toys, desk lamps, rechargeable lithium battery products
