Garden Tools Solutions

High-efficiency battery power and three-phase motor-control solutions for cordless lawn mowers, trimmers, blowers, chainsaws and other demanding garden equipment.

Cordless garden tools power and motor-control application

Efficient battery-to-motor power architecture for cordless garden equipment

Modern cordless garden tools require high peak torque, long operating time and dependable protection in compact, thermally constrained enclosures. The power architecture combines a removable lithium-ion battery pack, a low-loss anti-reverse connection stage, a three-phase MOSFET inverter and an integrated controller-and-driver platform. Together these blocks support efficient BLDC motor operation, fast transient response, controlled startup, regenerative-current handling and protection against overcurrent, undervoltage, locked rotor and abnormal temperature.

Key advantages

  • High peak torque capability
  • Extended battery runtime
  • Low reverse-polarity loss
  • Efficient three-phase switching
  • Fast current response
  • Smooth motor startup
  • Locked-rotor protection
  • Overcurrent protection
  • Battery undervoltage protection
  • Thermal derating support
  • Compact power-stage design
  • Scalable motor power

Garden tool power architecture and product mapping

Cordless Garden Tool Drive Architecture

Battery-pack power, anti-reverse connection, a three-phase MOSFET inverter, BLDC motor load and coordinated controller-and-gate-driver protection.

Garden Tools Solutions Editable two-to-one SVG block diagram for cordless garden tools. Interactive MOT-supported blocks are Battery Pack, Anti-Reverse Connection, Three-Phase Inverter, and Controller and Driver. GARDEN TOOLS SOLUTIONS Battery Pack Li-ion cells · BMS · pack interface Anti-Reverse Connection Ideal-diode path · reverse-polarity protection Three-Phase Inverter U V W Six-switch MOSFET bridge · PWM power stage BLDC Motor & Mechanical Load Blade · chain · fan · cutting head Controller & Driver PWM / FOC · gate drive · current sensing · protection PWM GATE CONTROL CURRENT / SPEED / POSITION FEEDBACK PACK STATUS / PROTECTION Filled blocks: MOT supported device candidates Outline blocks: system-level functional blocks MOT Semiconductor Solutions
Tip: Select a block in the diagram or choose a module from the list. On mobile, swipe horizontally to view the full diagram.

Explore the cordless garden-tool architecture through the interactive block diagram. Select the battery pack, anti-reverse connection, three-phase inverter or controller-and-driver block to review its design role, key engineering considerations and placeholder MOT device mapping.

About the solution

Battery-powered three-phase motor control optimized for torque, runtime and protection

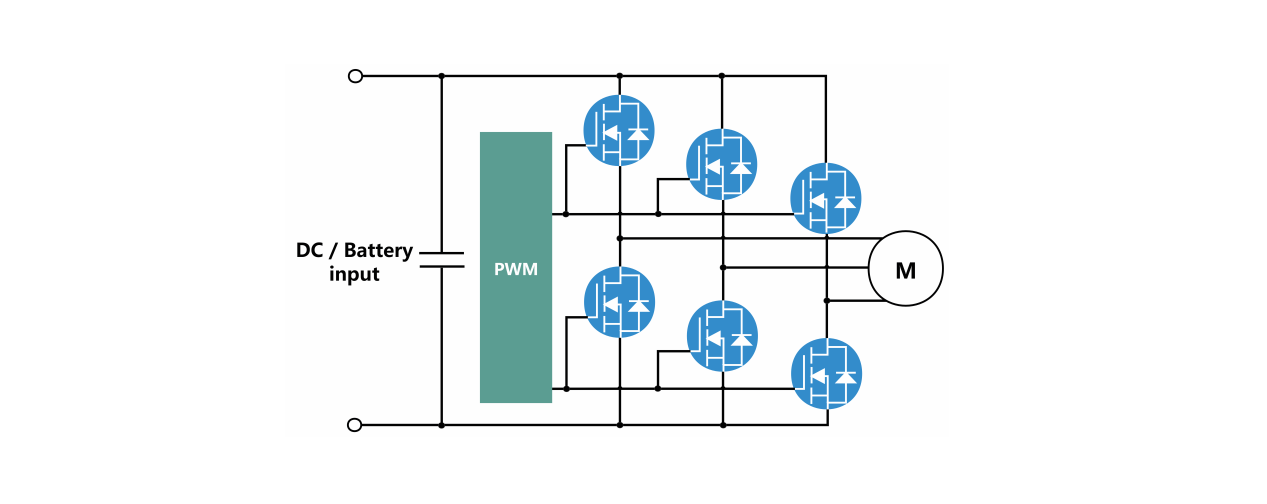

A removable lithium-ion battery pack feeds the drive through a low-loss anti-reverse connection stage before the three-phase inverter converts the DC bus into controlled phase currents for the BLDC motor. The controller and driver coordinate PWM timing, current measurement, startup, commutation or field-oriented control, regenerative-current behavior and fault shutdown. The architecture is designed to deliver high starting torque and fast load response while protecting the battery, inverter and motor under jammed-blade, locked-rotor and thermal-stress conditions.

Scalable across lawn mowers, trimmers, blowers, chainsaws and compact outdoor equipment

The same functional platform can be adapted for low-voltage handheld tools and higher-voltage, higher-power garden equipment. Battery voltage, inverter current, MOSFET package, cooling method, sensing strategy, motor-control algorithm and protection thresholds can be scaled for grass trimmers, hedge trimmers, leaf blowers, lawn mowers, pruning tools, chainsaws, tillers and other cordless outdoor products.

Device categories aligned with the battery interface, inverter bridge and motor-control path

Battery-pack protection devices, low-resistance anti-reverse MOSFETs, three-phase inverter MOSFETs, half-bridge and three-phase gate drivers, current-sense amplifiers, power supervisors, motor-control MCUs and auxiliary regulators provide a practical semiconductor platform for efficient, compact and robust garden-tool designs.

Battery-powered three-phase motor control optimized for torque, runtime and protection

A removable lithium-ion battery pack feeds the drive through a low-loss anti-reverse connection stage before the three-phase inverter converts the DC bus into controlled phase currents for the BLDC motor. The controller and driver coordinate PWM timing, current measurement, startup, commutation or field-oriented control, regenerative-current behavior and fault shutdown. The architecture is designed to deliver high starting torque and fast load response while protecting the battery, inverter and motor under jammed-blade, locked-rotor and thermal-stress conditions.

Scalable across lawn mowers, trimmers, blowers, chainsaws and compact outdoor equipment

The same functional platform can be adapted for low-voltage handheld tools and higher-voltage, higher-power garden equipment. Battery voltage, inverter current, MOSFET package, cooling method, sensing strategy, motor-control algorithm and protection thresholds can be scaled for grass trimmers, hedge trimmers, leaf blowers, lawn mowers, pruning tools, chainsaws, tillers and other cordless outdoor products.

Device categories aligned with the battery interface, inverter bridge and motor-control path

Battery-pack protection devices, low-resistance anti-reverse MOSFETs, three-phase inverter MOSFETs, half-bridge and three-phase gate drivers, current-sense amplifiers, power supervisors, motor-control MCUs and auxiliary regulators provide a practical semiconductor platform for efficient, compact and robust garden-tool designs.
