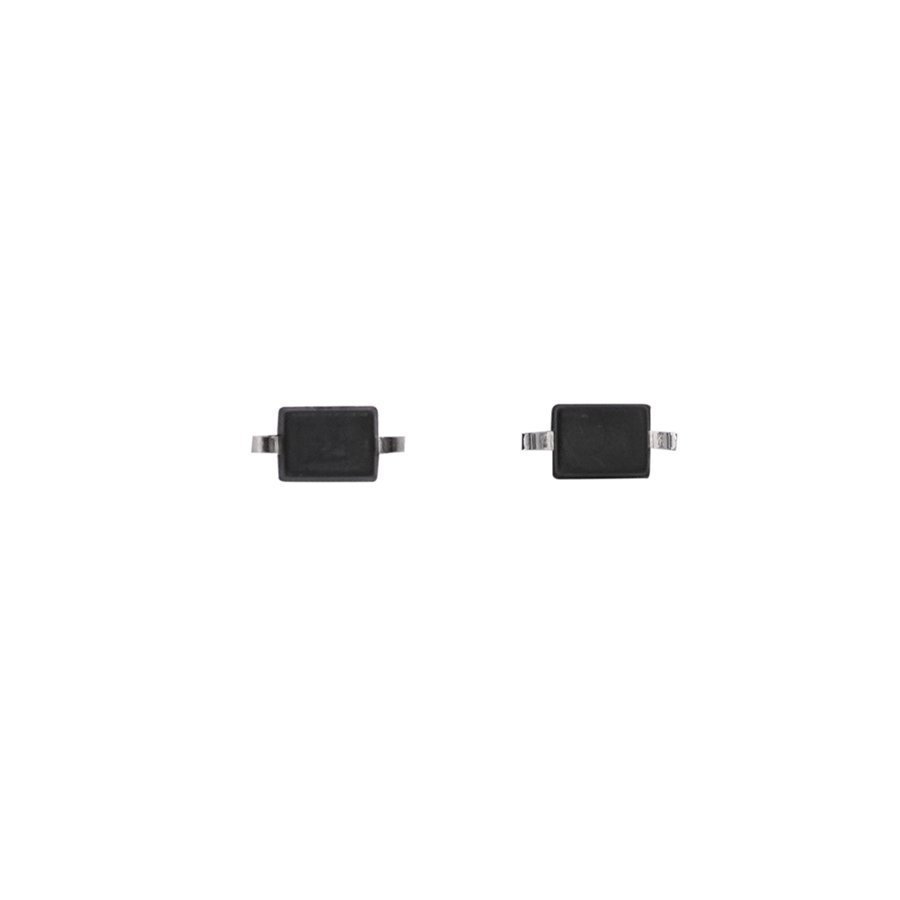

B5819WS
Suitable for high-speed switching, signal detection, clamping, polarity protection and low-current rectification.
Product information
Specifications, documents and sourcing support for B5819WS.
Technical specifications
Parametric data for product selection and design review.
- Cargo Status
- Active
- Supplier Device Package
- SOD-323
- IO(A)
- 1
- VRRM(V)
- 40
- IFSM(A)
- 9
- VF(V)
- 0.6
- @IF(A)
- 1
- IR<(uA)
- 1000
- @VR(V)
- 40
Overview & applications
Product positioning and recommended use cases.
DIODE 40V 1A 0.6V 1000uA
B5819WS is a small-signal Schottky diode in SOD-323, rated at 40 V and 1 A. Low forward voltage, low capacitance and negligible recovery time support fast, efficient signal handling.
Cross reference
Common market parts that may be evaluated against this MOT device.
| Manufacturer | Market part number | MOT part number |
|---|---|---|
| Diodes Inc. | B5819WS-7-F | B5819WS |
| Taiwan Semiconductor | B5819WS | B5819WS |
| Micro Commercial Components | B5819WS-TP | B5819WS |
| Nexperia | PMEG4010AEP | B5819WS |
| 扬杰科技（YJ） | SS1040W | B5819WS |
| 长电科技（JCET） | B5819WS | B5819WS |
| 华润微（CRMC） | B5819WS | B5819WS |
| ROHM | RB520SM-40 | B5819WS |
Cross references are a starting point for evaluation. Confirm electrical and package compatibility in the datasheets before design-in.
