Active

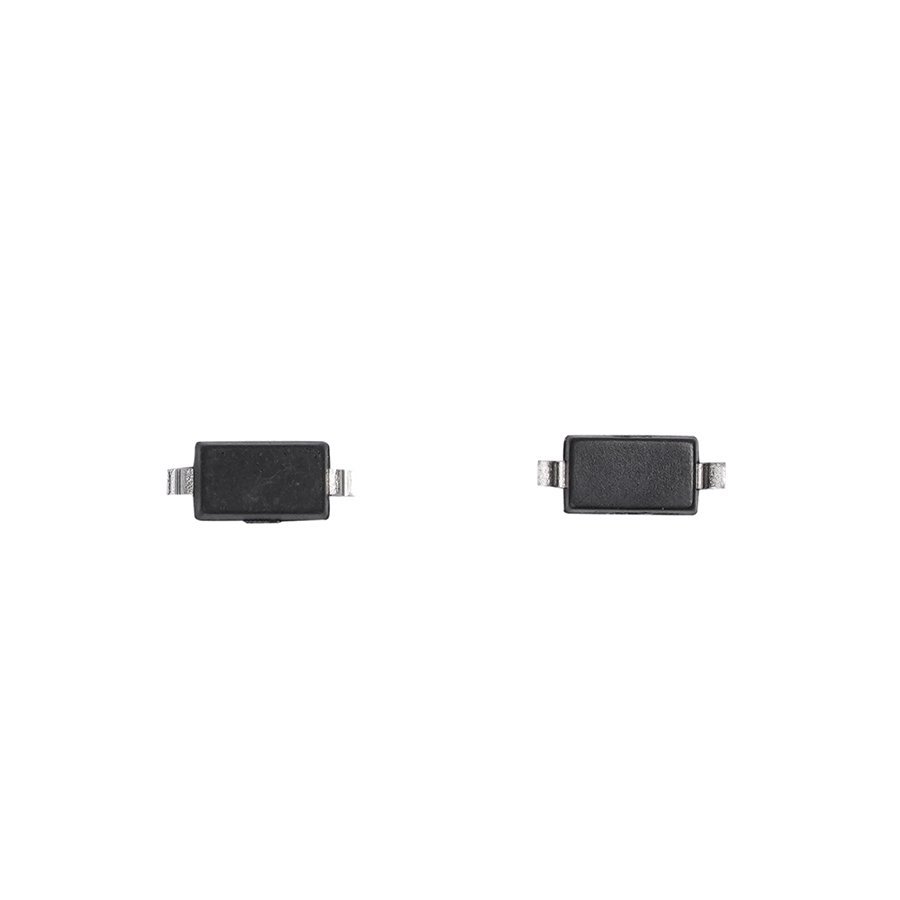

BAT46W

Widely used in smart toilets, notebooks and other application fields.

IO(A) 0.15
VRRM(V) 100
IFSM(A) 0.75
VF(V) 1
View Datasheet
Chat on WhatsApp
Engineering support Built for faster component evaluation and design-in decisions
Verified parametersKey electrical data at a glance
Design-in resourcesDatasheet and cross-reference support
Application supportEngineering contact available below
Engineering resources

Product information

Specifications, documents and sourcing support for BAT46W.

Technical specifications

Parametric data for product selection and design review.

Cargo Status
Active
Supplier Device Package
SOD-123
IO(A)
0.15
VRRM(V)
100
IFSM(A)
0.75
VF(V)
1
@IF(A)
0.25
IR<(uA)
2
@VR(V)
75

BAT46W Datasheet

Review electrical characteristics, package drawings and test conditions.

Download Datasheet

Overview & applications

Product positioning and recommended use cases.

DIODE 100V 0.15A 1V 2uA

BAT46W is a small signal Schottky diode with features of rectification circuit, switching power supply, signal processing, protection circuit, etc.

Cross reference

Common market parts that may be evaluated against this MOT device.

ManufacturerMarket part numberMOT part number
VishayBAT46WBAT46W
NexperiaBAT46WBAT46W
Diodes Inc.BAT46W-7-FBAT46W
STMicroelectronicsBAT46WBAT46W
Micro Commercial ComponentsBAT46WBAT46W
YAGEO(国巨)BAT46WBAT46W
ROHMRB160M-100MFBAT46W
扬杰科技(YJ)BAT46WBAT46W
华润微(CRMC)BAT46WBAT46W
长电科技(JCET)BAT46WBAT46W

Cross references are a starting point for evaluation. Confirm electrical and package compatibility in the datasheets before design-in.
