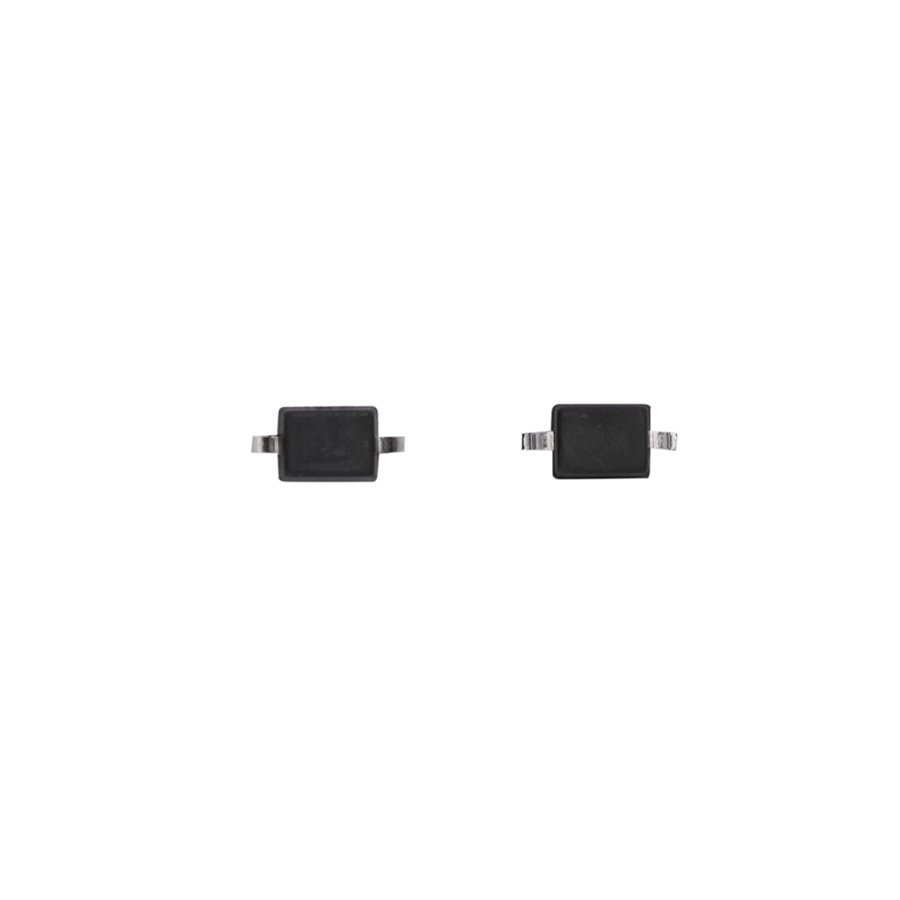

BAV20WS
Widely used in mobile phones, tablet computers, mobile devices, audio equipment, wireless transmission equipment, switches and security equipment, etc.
Product information
Specifications, documents and sourcing support for BAV20WS.
Technical specifications
Parametric data for product selection and design review.
- Cargo Status
- Active
- Supplier Device Package
- SOD-323
- IO(A)
- 0.2
- VRRM(V)
- 200
- IFSM(A)
- 2
- VF(V)
- 1.25
- @IF(A)
- 0.2
- IR<(uA)
- 0.1
- @VR(V)
- 150
Overview & applications
Product positioning and recommended use cases.
TRANS 200V 0.2A 1.25 SOD-323
BAV20WS is a small signal switching diode with functions such as rectification circuit, switching power supply and circuit protection.
Cross reference
Common market parts that may be evaluated against this MOT device.
| Manufacturer | Market part number | MOT part number |
|---|---|---|
| Vishay | BAV20WS | BAV20WS |
| Nexperia | BAV20WS | BAV20WS |
| Diodes Inc. | BAV20WS-7-F | BAV20WS |
| STMicroelectronics | BAV20WS | BAV20WS |
| Taiwan Semiconductor | BAV20WS | BAV20WS |
| Micro Commercial Components | BAV20WS | BAV20WS |
| YAGEO（国巨） | BAV20WS | BAV20WS |
| 扬杰科技（YJ） | BAV20WS | BAV20WS |
| 华润微（CRMC） | BAV20WS | BAV20WS |
| 长电科技（JCET） | BAV20WS | BAV20WS |
| 中微半导体（ZMSC） | BAV20WS | BAV20WS |
Cross references are a starting point for evaluation. Confirm electrical and package compatibility in the datasheets before design-in.
