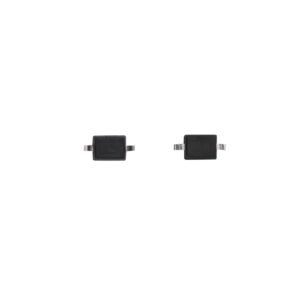

BZT52C12S
It is widely used in various switching power supplies, laptops, smart wearables, car audio systems, car navigation systems, communication base stations and other equipment.
Product information
Specifications, documents and sourcing support for BZT52C12S.
Technical specifications
Parametric data for product selection and design review.
- Cargo Status
- Active
- Supplier Device Package
- SOD323
- VF(V)
- 0.85
- PD(Mw)
- 200
- VZ(V)
- 12
- IR<(uA)
- 0.1
- VR(V)
- 8
- Package
- Tape & Reel (TR)
- Impedance (Max) (Zzt)( Ohms)
- 9.5
BZT52C12S Datasheet
Review electrical characteristics, package drawings and test conditions.
Overview & applications
Product positioning and recommended use cases.
DIODE 200V 0.85A 0.1uA SOD323
BZT52C12S has the characteristics of high voltage stabilization accuracy, fast response speed, and wide operating current range. It can play the role of overvoltage protection, voltage stabilization, amplitude limiting, and voltage reference in various electronic circuits.
Cross reference
Common market parts that may be evaluated against this MOT device.
| Manufacturer | Market part number | MOT part number |
|---|---|---|
| Vishay | BZT52C12S | BZT52C12S |
| Nexperia | BZT52C12S | BZT52C12S |
| Diodes Inc. | BZT52C12S | BZT52C12S |
| Taiwan Semiconductor | BZT52C12S | BZT52C12S |
| STMicroelectronics | BZT52C12S | BZT52C12S |
| Micro Commercial Components | BZT52C12S | BZT52C12S |
| YAGEO（国巨） | BZT52C12S | BZT52C12S |
| 扬杰科技（YJ） | BZT52C12S | BZT52C12S |
| 华润微（CRMC） | BZT52C12S | BZT52C12S |
| 长电科技（JCET） | BZT52C12S | BZT52C12S |
| 中微半导体（ZMSC） | BZT52C12S | BZT52C12S |
| 苏州固锝（ARC） | BZT52C12S | BZT52C12S |
Cross references are a starting point for evaluation. Confirm electrical and package compatibility in the datasheets before design-in.
