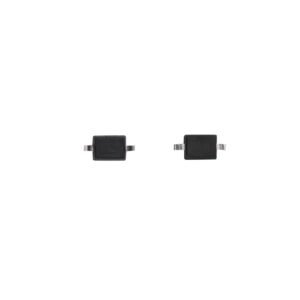

BZT52C20S
Commonly used in smart watches, various switching power supplies, industrial automation production lines, car audio systems, car engine control units, routers and other equipment.
Product information
Specifications, documents and sourcing support for BZT52C20S.
Technical specifications
Parametric data for product selection and design review.
- Cargo Status
- Active
- Supplier Device Package
- SOD323
- VF(V)
- 0.85
- PD(Mw)
- 200
- VZ(V)
- 20
- IR<(uA)
- 0.1
- VR(V)
- 14
- Package
- Tape & Reel (TR)
- Impedance (Max) (Zzt)( Ohms)
- 19
BZT52C20S Datasheet
Review electrical characteristics, package drawings and test conditions.
Overview & applications
Product positioning and recommended use cases.
DIODE 200V 0.85A 0.1uA SOD323
BZT52C20S has the characteristics of high voltage stabilization accuracy, fast response speed, simple structure, good temperature stability, wide operating current range, etc. It can play the role of voltage stabilization, limiting, overvoltage protection, voltage reference, level conversion, etc. in various electronic circuits.
Cross reference
Common market parts that may be evaluated against this MOT device.
| Manufacturer | Market part number | MOT part number |
|---|---|---|
| Vishay | BZT52C20S | BZT52C20S |
| Nexperia | BZT52C20S | BZT52C20S |
| Diodes Inc. | BZT52C20S | BZT52C20S |
| Taiwan Semiconductor | BZT52C20S | BZT52C20S |
| STMicroelectronics | BZT52C20S | BZT52C20S |
| Micro Commercial Components | BZT52C20S | BZT52C20S |
| YAGEO（国巨） | BZT52C20S | BZT52C20S |
| 扬杰科技（YJ） | BZT52C20S | BZT52C20S |
| 华润微（CRMC） | BZT52C20S | BZT52C20S |
| 长电科技（JCET） | BZT52C20S | BZT52C20S |
| 中微半导体（ZMSC） | BZT52C20S | BZT52C20S |
| 苏州固锝（ARC） | BZT52C20S | BZT52C20S |
Cross references are a starting point for evaluation. Confirm electrical and package compatibility in the datasheets before design-in.
