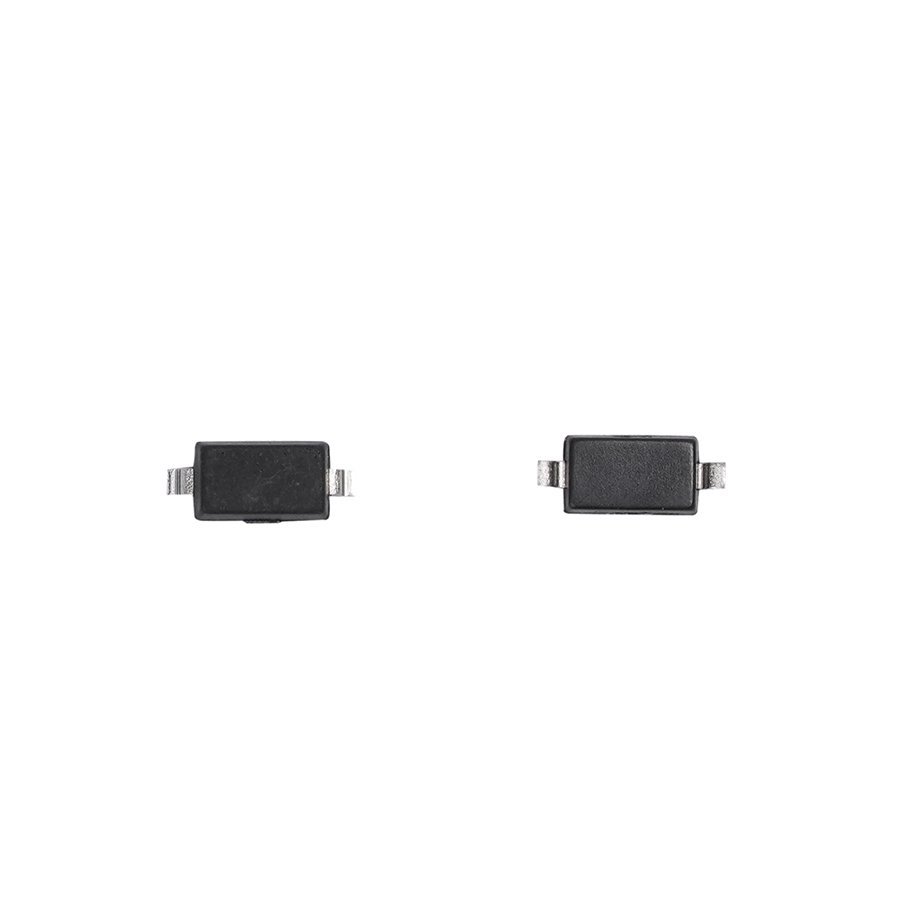

BZT52C24T1G
It is widely used in various switching power supplies, laptops, smart wearables, car audio systems, car navigation systems, communication base stations and other equipment.
Product information
Specifications, documents and sourcing support for BZT52C24T1G.
Technical specifications
Parametric data for product selection and design review.
- Cargo Status
- Active
- Supplier Device Package
- SOD123
- VF(V)
- 0.85
- PD(Mw)
- 500
- VZ(V)
- 24
- IR<(uA)
- 0.1
- VR(V)
- 17
- Package
- Tape & Reel (TR)
- Impedance (Max) (Zzt)( Ohms)
- 23.7
Overview & applications
Product positioning and recommended use cases.
DIODE 500V 0.85A 0.1uA SOD123
BZT52C24T1G has the characteristics of high voltage regulation accuracy, fast response speed, and wide operating current range. It can play the role of overvoltage protection, voltage regulation, limiting, and voltage reference in various electronic circuits.
Cross reference
Common market parts that may be evaluated against this MOT device.
| Manufacturer | Market part number | MOT part number |
|---|---|---|
| Vishay | BZT52C24T1G | BZT52C24T1G |
| Nexperia | BZT52C24T1G | BZT52C24T1G |
| Diodes Inc. | BZT52C24T1G | BZT52C24T1G |
| Taiwan Semiconductor | BZT52C24T1G | BZT52C24T1G |
| STMicroelectronics | BZT52C24T1G | BZT52C24T1G |
| Littelfuse | BZT52C24T1G | BZT52C24T1G |
| Micro Commercial Components | BZT52C24T1G | BZT52C24T1G |
| YAGEO（国巨） | BZT52C24 | BZT52C24T1G |
| ROHM | PRZ24MF | BZT52C24T1G |
| 扬杰科技（YJ） | BZT52C24T1G | BZT52C24T1G |
| 华润微（CRMC） | BZT52C24T1G | BZT52C24T1G |
| 长电科技（JCET） | BZT52C24T1G | BZT52C24T1G |
| 中微半导体（ZMSC） | BZT52C24T1G | BZT52C24T1G |
| 苏州固锝（ARC） | BZT52C24T1G | BZT52C24T1G |
Cross references are a starting point for evaluation. Confirm electrical and package compatibility in the datasheets before design-in.
