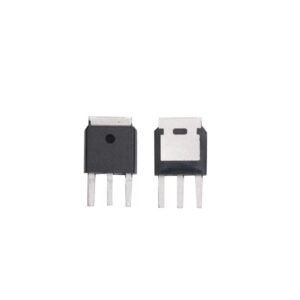

MBR1060UA
Widely used in LED lighting, adapters, chargers, OBC, energy storage inverters, home appliance power supplies, communication power supplies and other fields
Product information
Specifications, documents and sourcing support for MBR1060UA.
Technical specifications
Parametric data for product selection and design review.
- Cargo Status
- Active
- Supplier Device Package
- TO-220
- IF(AV)(A)
- 10
- VRRM(V)
- 60
- VF(V)
- 0.56
- IR<(uA)
- 20
- IFSM(A)
- 150
Overview & applications
Product positioning and recommended use cases.
DIODE 60V 10A 20uA TO-220
MBR1060UA is a trench Schottky diode with a wider safe operating range (SOA) and better thermal shock robustness, better ESD and surge current resistance. It can be widely used in various power circuits.
Cross reference
Common market parts that may be evaluated against this MOT device.
| Manufacturer | Market part number | MOT part number |
|---|---|---|
| onsemi | NRVTS10U60G | MBR1060UA |
| STMicroelectronics | STPSH10H60A | MBR1060UA |
| Vishay (TMBS) | V10P60S-E3/4W | MBR1060UA |
| ROHM | YQ10NS60A | MBR1060UA |
| Diodes Inc. | SBR10U60P | MBR1060UA |
| Diodes Inc. | MBR10U60-G | MBR1060UA |
| 扬杰科技（YJ） | TSR10U60A | MBR1060UA |
| 华润微（CRMC） | HSR10H60 | MBR1060UA |
| 东海半导体（WXDH） | SBH10H60 | MBR1060UA |
| PANJIT（强茂） | MBR10U60A | MBR1060UA |
Cross references are a starting point for evaluation. Confirm electrical and package compatibility in the datasheets before design-in.
