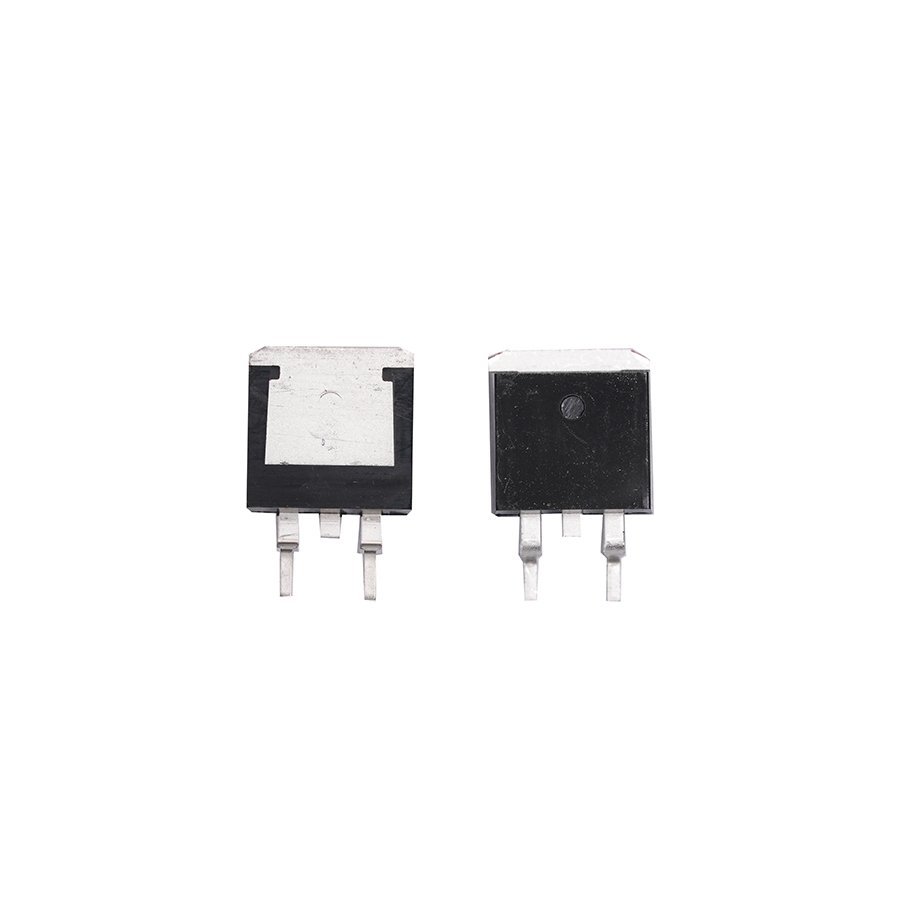

MBR20100UE
Widely used in LED lighting, adapters, charger power supplies, energy storage inverters, home appliance power supplies, communication power supplies and other fields
Product information
Specifications, documents and sourcing support for MBR20100UE.
Technical specifications
Parametric data for product selection and design review.
- Cargo Status
- Active
- Supplier Device Package
- TO-263
- IF(AV)(A)
- 20
- VRRM(V)
- 100
- VF(V)
- 0.67
- IR<(uA)
- 15
- IFSM(A)
- 200
MBR20100UE Datasheet
Review electrical characteristics, package drawings and test conditions.
Overview & applications
Product positioning and recommended use cases.
DIODE 100V 20A 15uA TO-263
MBR20100UE is a trench Schottky diode with the characteristics of fast switching speed, low leakage current and high temperature stability. It has better ESD and surge current resistance. It can be widely used in various power circuits.
Cross reference
Common market parts that may be evaluated against this MOT device.
| Manufacturer | Market part number | MOT part number |
|---|---|---|
| onsemi | NRVTSB20U100G | MBR20100UE |
| STMicroelectronics | STPSH20H100D | MBR20100UE |
| Vishay (TMBS) | VS-V20100S-M3 | MBR20100UE |
| ROHM | YQ20NL10E | MBR20100UE |
| Diodes Inc. | SBR20U100SA | MBR20100UE |
| 扬杰科技（YJ） | TSR20U100E | MBR20100UE |
| 华润微（CRMC） | HSR20H100E | MBR20100UE |
Cross references are a starting point for evaluation. Confirm electrical and package compatibility in the datasheets before design-in.
