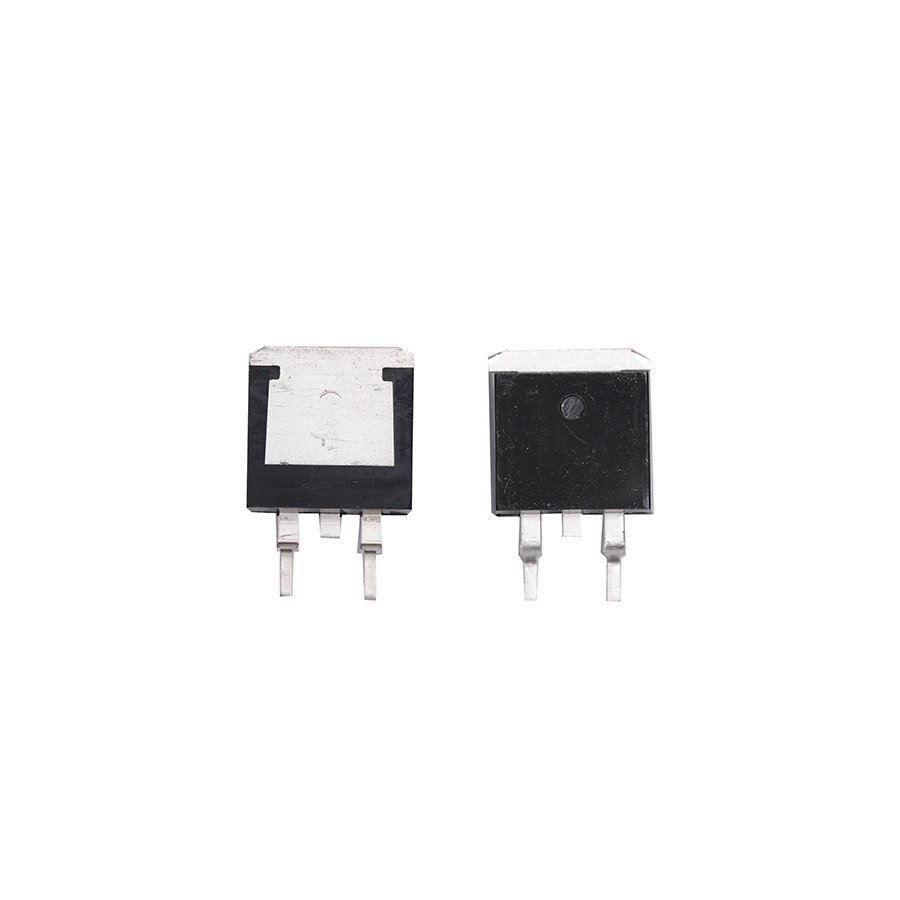

MBR20150E
Widely used in LED lighting, adapters, chargers, OBC, energy storage inverters, home appliance power supplies, communication power supplies and other fields
Product information
Specifications, documents and sourcing support for MBR20150E.
Technical specifications
Parametric data for product selection and design review.
- Cargo Status
- Active
- Supplier Device Package
- TO-263
- IF(AV)(A)
- 20
- VRRM(V)
- 150
- VF(V)
- 0.86
- IR<(uA)
- 50
- IFSM(A)
- 200
MBR20150E Datasheet
Review electrical characteristics, package drawings and test conditions.
Overview & applications
Product positioning and recommended use cases.
DIODE 150V 20A 50 TO-263
MBR20150E is a planar Schottky diode that provides a current path when the motor is reversed or braked to prevent the high voltage generated by the motor from damaging the drive circuit. It can be widely used in various switching power supply fields.
Cross reference
Common market parts that may be evaluated against this MOT device.
| Manufacturer | Market part number | MOT part number |
|---|---|---|
| onsemi | MBRB20150G | MBR20150E |
| Vishay | VS-MBRB20150-M3 | MBR20150E |
| STMicroelectronics | STPS20L150D | MBR20150E |
| 扬杰科技（YJ） | SR20150E | MBR20150E |
| 华润微（CRMC） | HSR20150E | MBR20150E |
Cross references are a starting point for evaluation. Confirm electrical and package compatibility in the datasheets before design-in.
