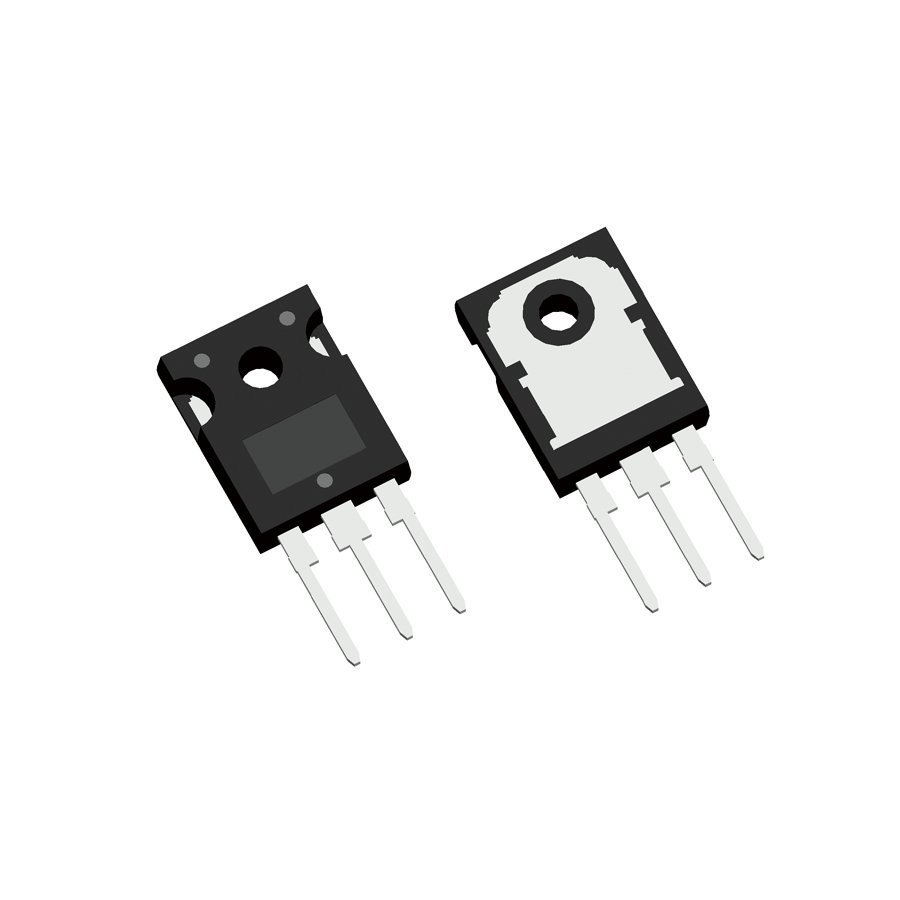

MBR6045W
Widely used in LED lighting, adapters, chargers, OBC, energy storage inverters, home appliance power supplies, communication power supplies and other fields
Product information
Specifications, documents and sourcing support for MBR6045W.
Technical specifications
Parametric data for product selection and design review.
- Cargo Status
- Active
- Supplier Device Package
- TO-247S
- IF(AV)(A)
- 60
- VRRM(V)
- 45
- VF(V)
- 0.65
- IR<(uA)
- 50
- IFSM(A)
- 500
MBR6045W Datasheet
Review electrical characteristics, package drawings and test conditions.
Overview & applications
Product positioning and recommended use cases.
DIODE 45V 60A 50 TO-247S
MBR6045W is a planar Schottky diode that improves power supply efficiency. Its fast recovery characteristics enable the power supply to work stably at high frequencies and output stable DC voltage. It can be widely used in new energy equipment such as charging piles and solar inverters.
Cross reference
Common market parts that may be evaluated against this MOT device.
| Manufacturer | Market part number | MOT part number |
|---|---|---|
| onsemi | MBR6045PT | MBR6045W |
| Vishay | VS-MBR6045PT-M3 | MBR6045W |
| STMicroelectronics | STPS60L45W | MBR6045W |
| 扬杰科技（YJ） | SR6045W | MBR6045W |
| ASEMI | MBR6045PT | MBR6045W |
Cross references are a starting point for evaluation. Confirm electrical and package compatibility in the datasheets before design-in.
