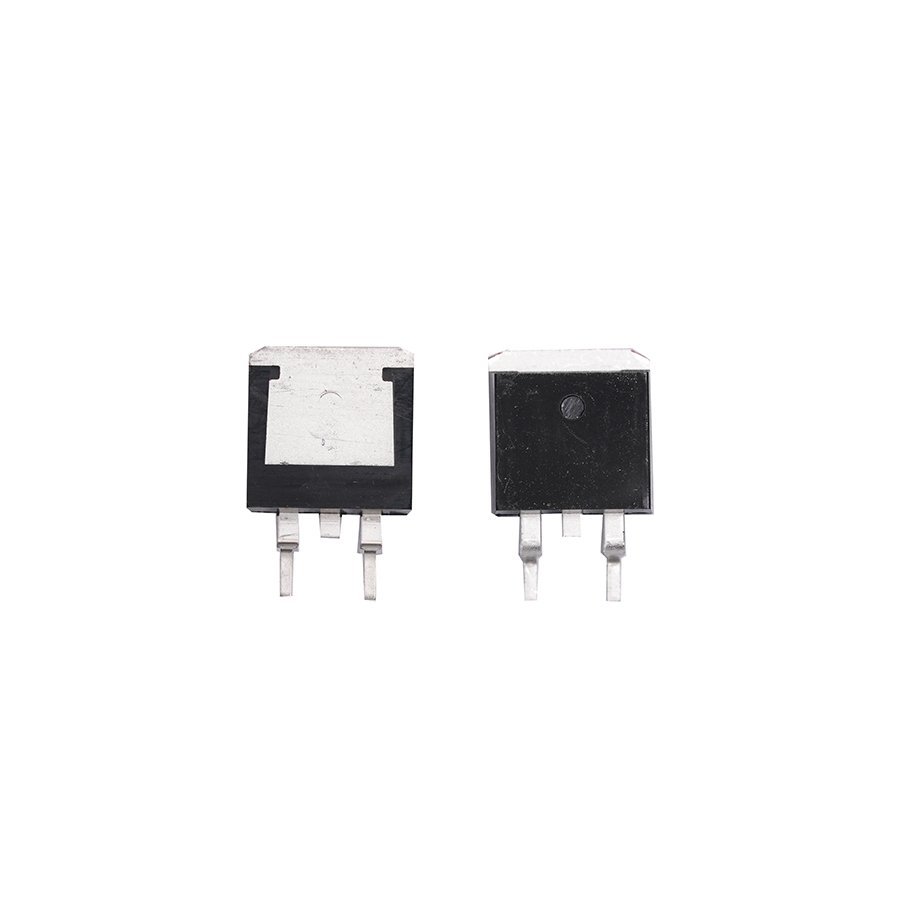

MOT100N07E
It is widely used in various switching mode power supply applications.
Product information
Specifications, documents and sourcing support for MOT100N07E.
Technical specifications
Parametric data for product selection and design review.
- Cargo Status
- Active
- Supplier Device Package
- TO-263
- BVDSS
- 70
- ID[A](25℃)
- 100
- VGS(th)[V](max)
- 4
- Rds(on) [ mohm] at Vgs=10V（TYP)
- 5.2
- Rds(on) [ mohm] at Vgs=10V（MAX)
- 6.5
MOT100N07E
Review electrical characteristics, package drawings and test conditions.
Overview & applications
Product positioning and recommended use cases.
MOSFET N 100V 70A 5.2 TO-263
MOT100N07E is a low-voltage with high-power N- channel Mosfet with VDS at 70V and ID at 100A. Owing to its advanced SGT technology it gain many benefits such as super low RDS(on), low Qg(nC) and gate voltage, low VGS(th) , and cost-effective. The Mosfet is mainly used for high frequency circuits, and DC switching power supplies,etc.
Cross reference
Common market parts that may be evaluated against this MOT device.
| Manufacturer | Market part number | MOT part number |
|---|---|---|
| STMicroelectronics | STB70NF10L | MOT100N07E |
| Vishay（原IR） | IRFB7437S | MOT100N07E |
| 扬杰科技（YJ） | YJE100N07E | MOT100N07E |
| 华润微（CRMC） | CRMC100N07E | MOT100N07E |
Cross references are a starting point for evaluation. Confirm electrical and package compatibility in the datasheets before design-in.
