MOT1115BT4
Suitable for high-current switching, motor drives, battery protection, switch-mode power supplies and DC power conversion.
VDss[V](min)
100
ID[A](25℃)
373
VGS(th)[V](max)
4
Rds(on) [ mohm] at Vgs=10V（TYP)
1.05
Engineering support
Built for faster component evaluation and design-in decisions
Verified parametersKey electrical data at a glance
Design-in resourcesDatasheet and cross-reference support
Application supportEngineering contact available below
Engineering resources
Product information
Specifications, documents and sourcing support for MOT1115BT4.
Technical specifications
Parametric data for product selection and design review.
- Supplier Device Package
- TOLT
- VDss[V](min)
- 100
- ID[A](25℃)
- 373
- VGS(th)[V](max)
- 4
- Rds(on) [ mohm] at Vgs=10V（TYP)
- 1.05
- Rds(on) [ mohm] at Vgs=10V（MAX)
- 1.3
- Qg [nC] at 10V Typ
- 153
- Qgs [nC] Typ
- 63
- Qgd [nC] Typ
- 69
Overview & applications
Product positioning and recommended use cases.
MOSFET N-CH 373V 100A 1.05 TOLT

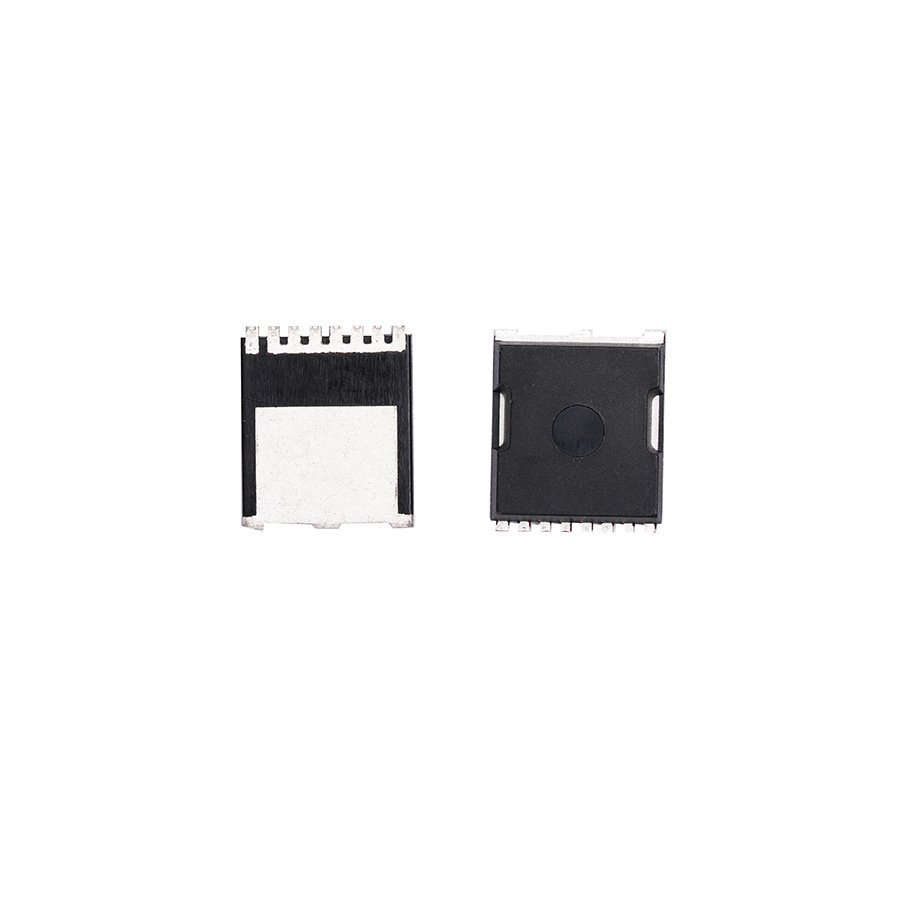

MOT1115BT4 is a power N-channel MOSFET in TOLT, rated at 100 V and 373 A. Low on-resistance and fast switching help reduce losses in high-current, high-density power designs.
