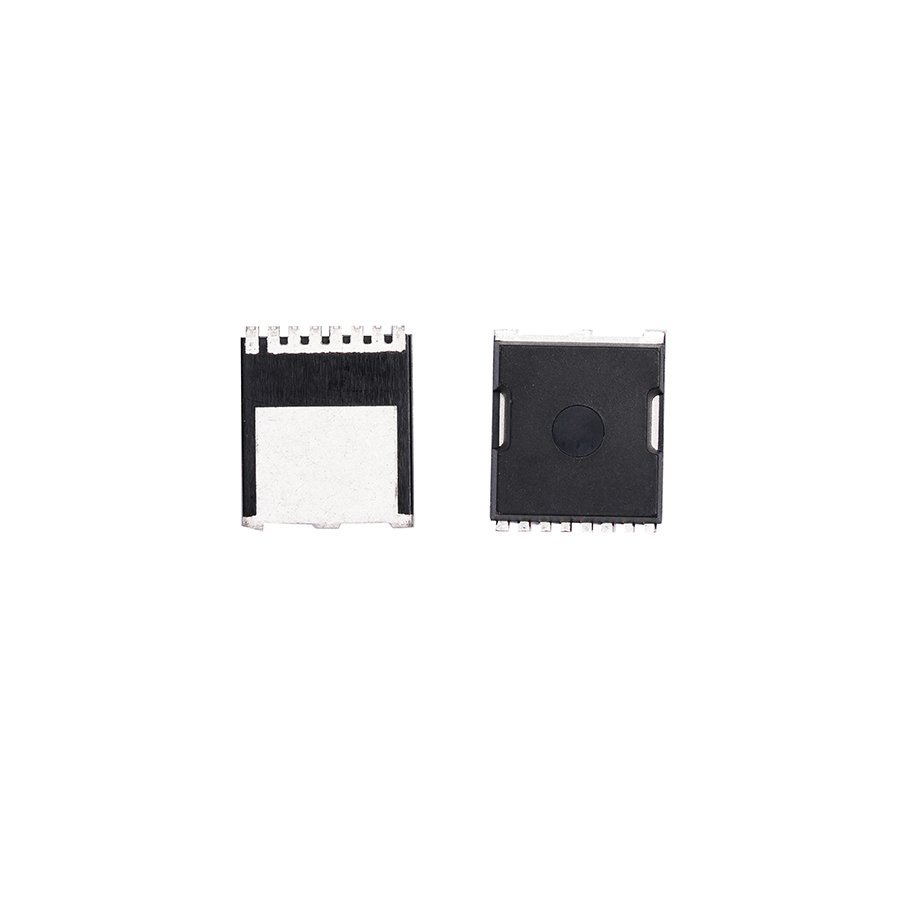

MOT1130T
It is widely used for power tools, electric scooters, lawn mowers, outdoor energy storage cabinets ect.
Product information
Specifications, documents and sourcing support for MOT1130T.
Technical specifications
Parametric data for product selection and design review.
- Product Status
- Active
- Supplier Device Package
- TOLL-8
- VDss[V](min)
- 100
- ID[A](25℃)
- 176
- VGS(th)[V](max)
- 4
- Rds(on) [ mohm] at Vgs=10V（TYP)
- 3
- Rds(on) [ mohm] at Vgs=10V（MAX)
- 4
- Qg [nC] at 10V Typ
- 100
- Qgs [nC] Typ
- 43.4
- Qgd [nC] Typ
- 19.7
- Package
- Tape & Reel (TR)
- Mounting Type
- Surface Mount
- Vgs (Max)
- ±20V
- Power Dissipation Max(W)
- 263
MOT1130T
Review electrical characteristics, package drawings and test conditions.
Overview & applications
Product positioning and recommended use cases.
MOSFET N-CH 176V 100A 3 TOLL-8
MOT1130T is a low-voltage and high power N-Ch Toll package Mosfet with VDS at 100V and ID at 176A. It has a large package size, quick switching speed, low gate drive current and high input impedance. The Mosfet is used in various electronic devices, especially in situations that require fast switching and efficient energy conversion. It has a wide range of applications and is cost-effective. It is mainly used in high-power products such as BMS power battery protection, energy storage protection board, and load switch.
