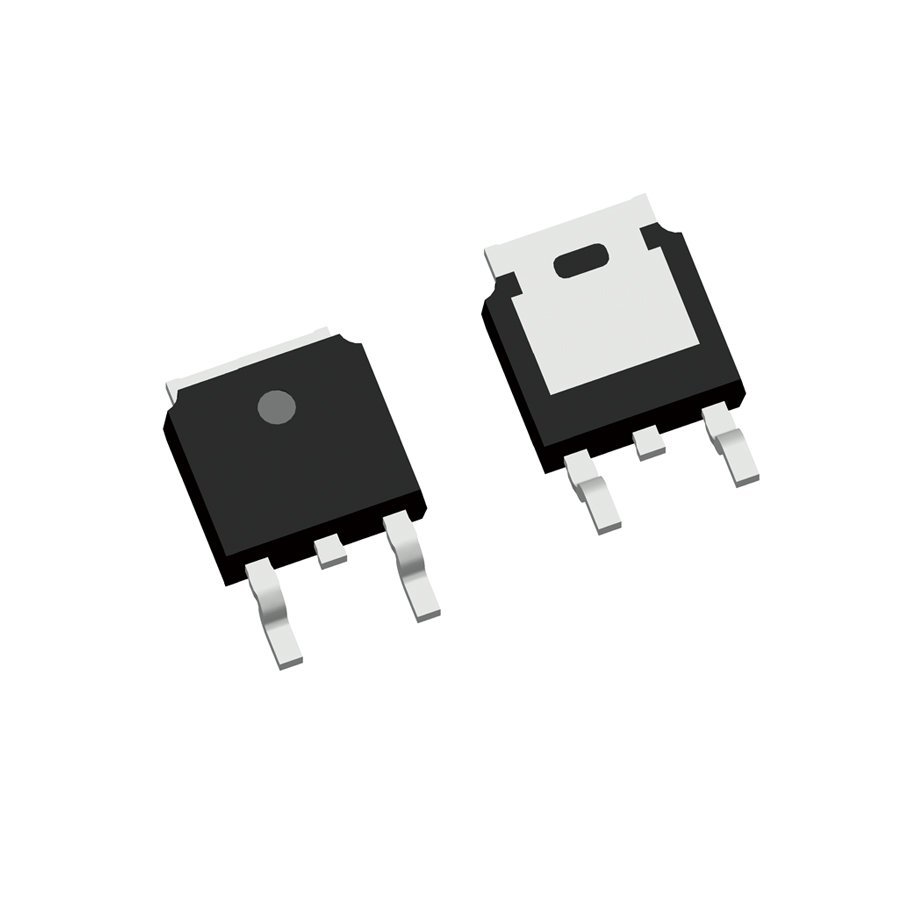

MOT1145D
Status：
Package Type：
Category：
Item Description：
Datasheet：
Product Attributes
| Category | Medium/Low Trench SGT MOS |
| Supplier Device Package | TO-252 |
| BVDSS | 100 |
| ID[A](25℃) | 90 |
| VGS(th)[V](max) | 3 |
| Rds(on) [ mohm] at Vgs=10V（TYP) | 4.4 |
| Rds(on) [ mohm] at Vgs=10V（MAX) | 5.2 |
| Rds(on) [ mohm] at Vgs=4.5V（TYP) | 7 |
| Rds(on) [ mohm] at Vgs=4.5V（MAX) | 8.6 |
| Rds(on) [ mohm] at Vgs=2.5V（TYP) | |
| Rds(on) [ mohm] at Vgs=2.5V（MAX) | |
| Qg [nC] at 10V Typ | 42 |
| Qgs [nC] Typ | 6.5 |
| Cargo Status | Active |
| Cargo Status | Active |
| Qgd [nC] Typ | 9.7 |
| Configuration | N |
| Package Type | Tape & Reel (TR) |
| Technology | MOSFET (Metal Oxide) |
| Mounting Type | Surface Mount |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Rds On (Max) @ Id, Vgs | 5.5mOhm @ 20A, 10V |
| Vgs(th) (Max) @ Id | 2.5V @ 250µA |
| Gate Charge (Qg) (Max) @ Vgs | 42 nC @ 10 V |
| Vgs (Max) | ±20V |
| Input Capacitance (Ciss) (Max) @ Vds | 3100 pF @ 50 V |
| Power Dissipation (Max)(W) | 75 |
Product Description
MOT1145D is a middle-voltage with high-power N- channel Mosfet with VDS at 100V and ID at 90A. The MOSFET is with low RDS(on), large ID current, large package size and low Qg(nC), and cost-effective. It is widely used for high-power DC power supplies, high-power motor drive and BMS,etc.
Documents and Media
Datasheet
Product Application Areas
It is widely used in various application fields such as BMS, Motor drive, LED Lighting, Adapter, TV power supply and PC power supply etc.
