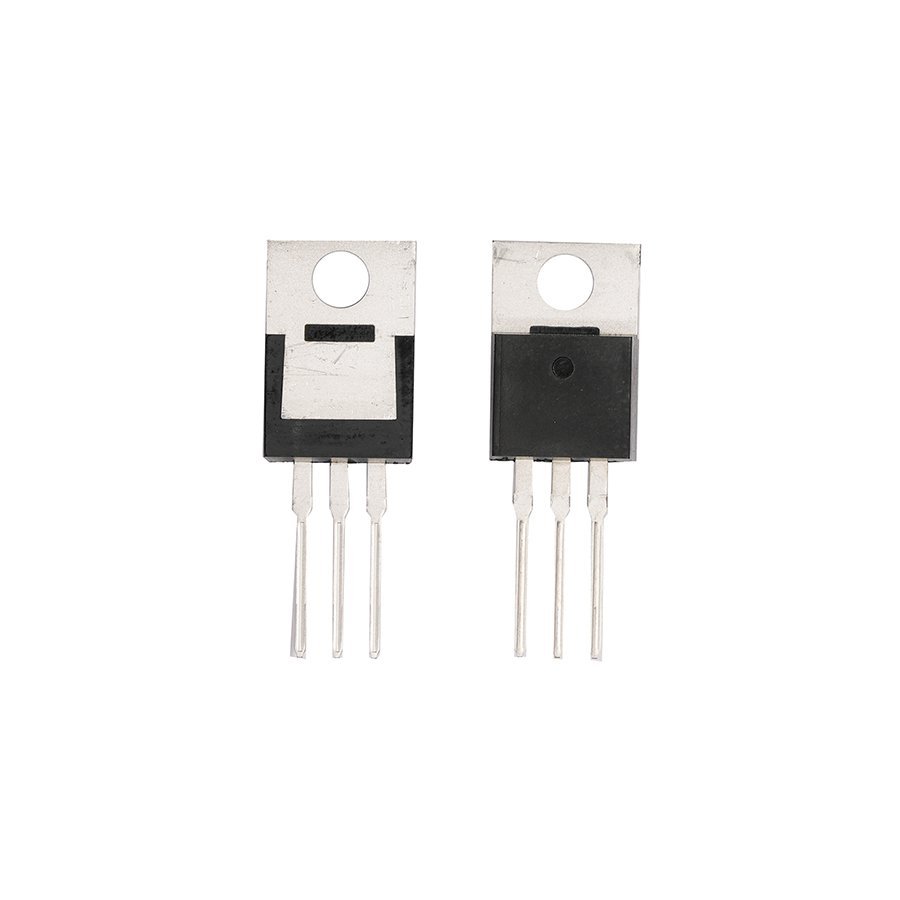

MOT13005DA
Widely used in tablet computers, mobile phone chargers, energy-saving lamps, fluorescent lamps, intercoms, car seat heating, in-car entertainment and other equipment.
Product information
Specifications, documents and sourcing support for MOT13005DA.
Technical specifications
Parametric data for product selection and design review.
- Cargo Status
- Active
- Supplier Device Package
- TO-220
- Ic(A)
- 4
- BVCBO(V)
- 700
- BVCEO(V)
- 400
- BVEB(V)
- 6
- HFE
- 20-30
- TS(nS)
- 2-5
- Package
- Tube
- Mounting Type
- Surface Mount
- Power - Max(W)
- 75
- Frequency - Transition
- 4MHz
MOT13005DA Datasheet
Review electrical characteristics, package drawings and test conditions.
Overview & applications
Product positioning and recommended use cases.
TRANS 700V 4A 6V TO-220
MOT13005DA has the characteristics of high-frequency switching capability, low saturation voltage drop, high voltage resistance, and high current capability. It is suitable for amplifier circuits, switching circuits, pulse circuits, etc., especially for occasions requiring higher voltage resistance.
Cross reference
Common market parts that may be evaluated against this MOT device.
| Manufacturer | Market part number | MOT part number |
|---|---|---|
| onsemi | MJE13005G | MOT13005DA |
| STMicroelectronics | MJE13005 | MOT13005DA |
| Fairchild（onsemi） | MJE13005 | MOT13005DA |
| STMicroelectronics | BU406 | MOT13005DA |
| Toshiba | 2SC3886A | MOT13005DA |
| CDIL | MJE13005 | MOT13005DA |
| KEC | KSE13005 | MOT13005DA |
| 扬杰科技（YJ） | MJE13005 | MOT13005DA |
| 长电科技（JCET） | MJE13005 | MOT13005DA |
| 华润微（CRMC） | MJE13005 | MOT13005DA |
| 苏州固锝（ARC） | MJE13005 | MOT13005DA |
| 中微半导体（ZMSC） | MJE13005 | MOT13005DA |
Cross references are a starting point for evaluation. Confirm electrical and package compatibility in the datasheets before design-in.
