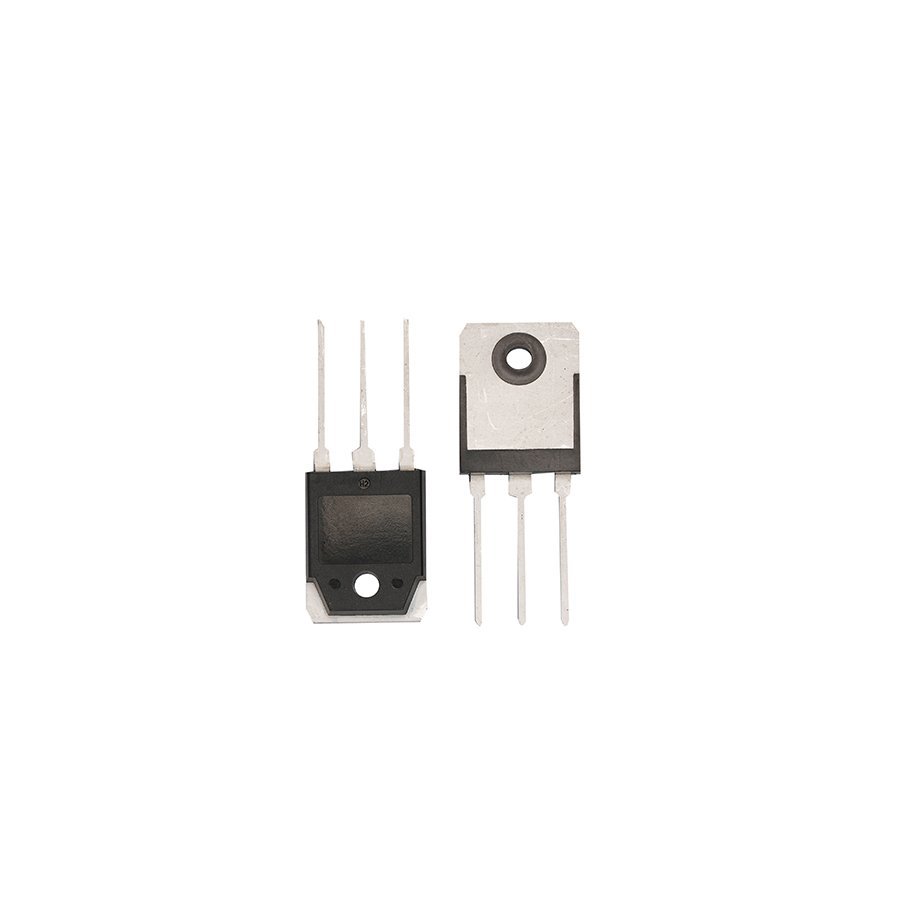

MOT13009DQ
Widely used in digital cameras, energy-saving lamps, computer power supplies, mobile phone chargers, instrument panel controls, shifters, intercoms, car seat heating, in-car entertainment and other equipment.
Product information
Specifications, documents and sourcing support for MOT13009DQ.
Technical specifications
Parametric data for product selection and design review.
- Cargo Status
- Active
- Supplier Device Package
- TO-3PB
- Ic(A)
- 12
- BVCBO(V)
- 700
- BVCEO(V)
- 400
- BVEB(V)
- 6
- HFE
- 20-35
- TS(nS)
- 2-8
MOT13009DQ Datasheet
Review electrical characteristics, package drawings and test conditions.
Overview & applications
Product positioning and recommended use cases.
TRANS 700V 12A 6V TO-3PB
MOT13009DQ has fast switching speed, high voltage resistance, good high current carrying capacity and low saturation voltage drop, and is widely used in various switching power supplies, transformers and power switching applications.
Cross reference
Common market parts that may be evaluated against this MOT device.
| Manufacturer | Market part number | MOT part number |
|---|---|---|
| onsemi | MJE13009Q | MOT13009DQ |
| CDIL | MJE13009Q | MOT13009DQ |
| KEC | KSE13009Q | MOT13009DQ |
| 扬杰科技（YJ） | MJE13009Q | MOT13009DQ |
| 长电科技（JCET） | MJE13009Q | MOT13009DQ |
| 华润微（CRMC） | MJE13009Q | MOT13009DQ |
| 苏州固锝（ARC） | MJE13009Q | MOT13009DQ |
Cross references are a starting point for evaluation. Confirm electrical and package compatibility in the datasheets before design-in.
