Active

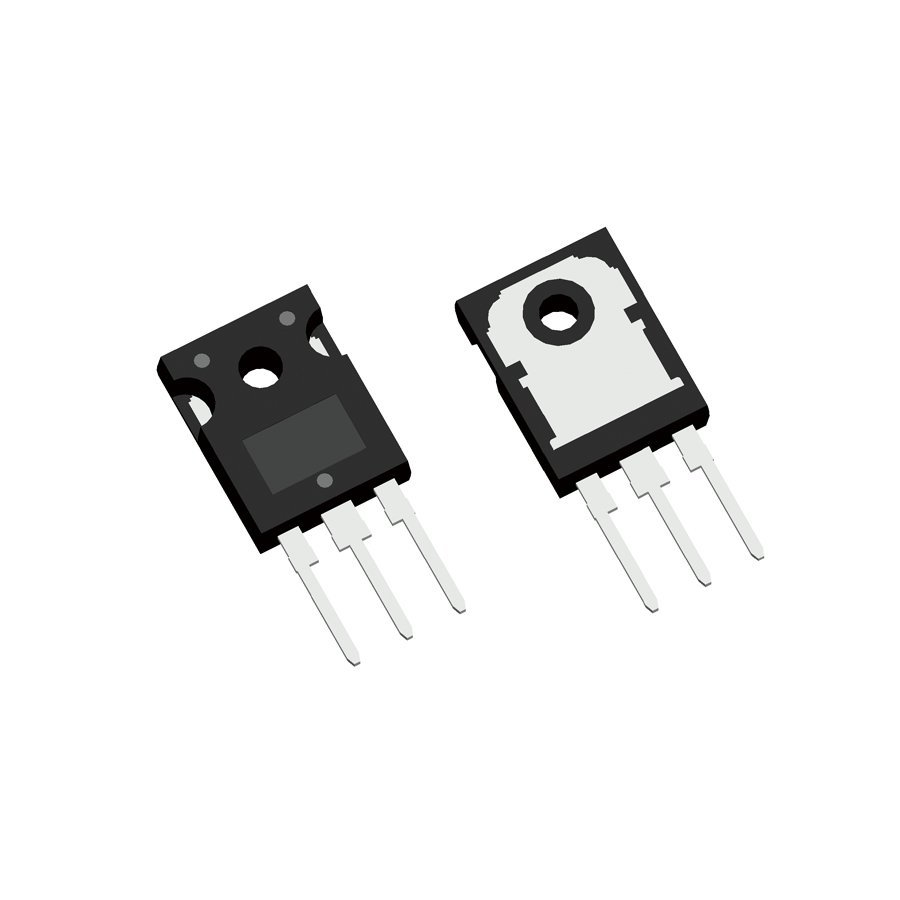

MOT20N50W

It is widely used in UPS, electric vehicles, communication power supply in the industrial field, and LED lightings, adapters, TV power supply and PC power supply in the consumer field, etc.

VDss(V) 500
ID(A) 20
VGS(th)(V) 2-4
Rds(on) Max(mΩ) 0.25
View Datasheet
Engineering support Built for faster component evaluation and design-in decisions
Verified parametersKey electrical data at a glance
Design-in resourcesDatasheet and cross-reference support
Application supportEngineering contact available below
Engineering resources

Product information

Specifications, documents and sourcing support for MOT20N50W.

Technical specifications

Parametric data for product selection and design review.

Cargo Status
Active
VDss(V)
500
ID(A)
20
VGS(th)(V)
2-4
Rds(on) Max(mΩ)
0.25
Supplier Device Package
TO-247S
Gate Charge (Qg) (Max) @ Vgs
52 nC @ 10 V
Poer Dissipation (Max)
260
Mounting Type
Through Hole

MOT20N50W

Review electrical characteristics, package drawings and test conditions.

Download Datasheet

Overview & applications

Product positioning and recommended use cases.

MOSFET 500v 20A 0.25 TO-247S

MOT20N50W is a VD MOSFET, which is designed and manufactured with the best planar technology of the industry. It has a lower conduction loss and switching loss, so as to suitable for various switching mode power supply applications.

Cross reference

Common market parts that may be evaluated against this MOT device.

ManufacturerMarket part numberMOT part number
onsemi(原Fairchild)FCA20N50FMOT20N50W
STMicroelectronicsSTW20NM50NMOT20N50W
Infineon(原IR)SPW20N50C3MOT20N50W
扬杰科技(YJ)YFW20N50WMOT20N50W
华润微(CRMC)CRG20N50WMOT20N50W

Cross references are a starting point for evaluation. Confirm electrical and package compatibility in the datasheets before design-in.
