MOT2310A3
Suitable for load switching, portable devices, DC/DC converters, LED drivers and compact power management.
Product information
Specifications, documents and sourcing support for MOT2310A3.
Technical specifications
Parametric data for product selection and design review.
- Cargo Status
- Active
- Supplier Device Package
- SOT-23A-3L
- VDss[V](min)
- 60
- ID[A](25℃)
- 3
- VGS(th)[V](max)
- 2
- Rds(on) [ mohm] at Vgs=10V（TYP)
- 66
- Rds(on) [ mohm] at Vgs=10V（MAX)
- 86
- Rds(on) [ mohm] at Vgs=4.5V（TYP)
- 89
- Rds(on) [ mohm] at Vgs=4.5V（MAX)
- 115
- Qg [nC] at 10V Typ
- 7.5
- Qgs [nC] Typ
- 1.4
- Qgd [nC] Typ
- 3
- Configuration
- Single_N
Overview & applications
Product positioning and recommended use cases.

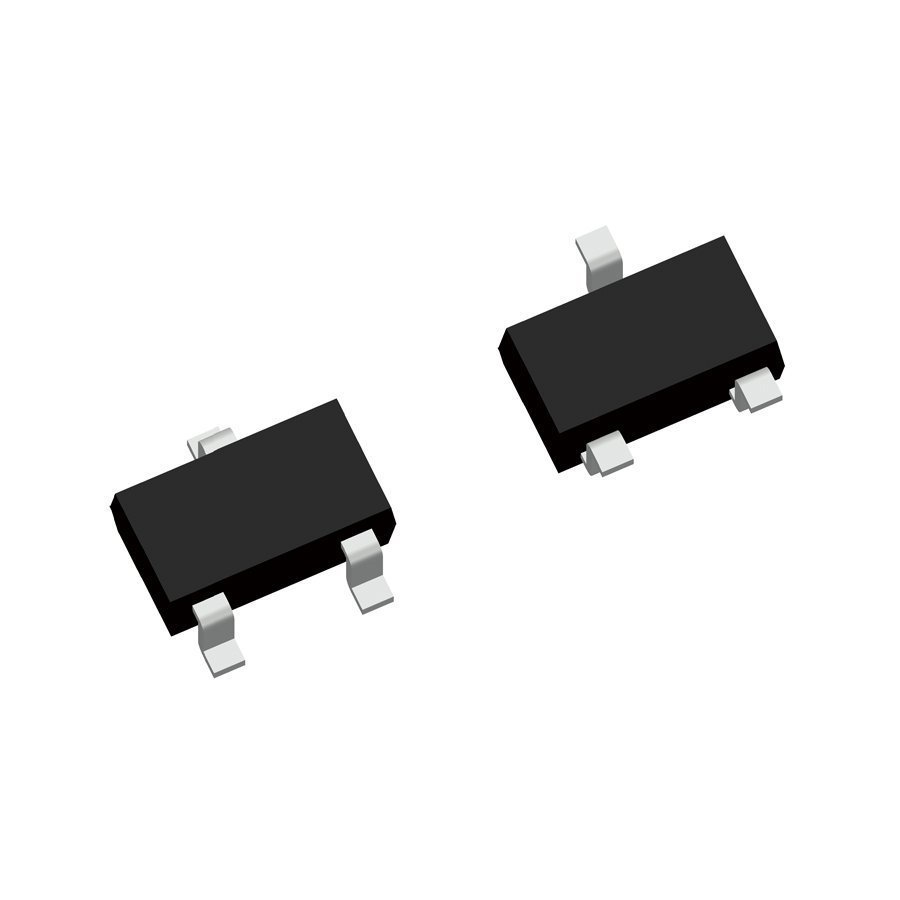

MOSFET 60V 3A 2V SOT-23A-3L
MOT2310A3 is an N-channel MOSFET in SOT-23A-3L, rated at 60 V and 3 A. Low on-resistance and gate charge enable efficient switching in compact, battery-powered and DC/DC circuits.
Cross reference
Common market parts that may be evaluated against this MOT device.
| Manufacturer | Market part number | MOT part number |
|---|---|---|
| Nexperia | NX3010NBK | MOT2310A3 |
| onsemi（原Fairchild） | FDN5N020N | MOT2310A3 |
| Vishay | SI2312BDS | MOT2310A3 |
| Alpha&Omega (AOS) | AO3400 | MOT2310A3 |
| Infineon（原IR） | IRLML2244TRPBF | MOT2310A3 |
| 扬杰科技（YJ） | YJB23N10A3 | MOT2310A3 |
| 华润微（CRMC） | CRMC2310A3 | MOT2310A3 |
| 长电科技（JCET） | JCET2310A3 | MOT2310A3 |
Cross references are a starting point for evaluation. Confirm electrical and package compatibility in the datasheets before design-in.
