MOT30N03C
It is widely used in various application fields such as BMS, Motor drive, LED Lighting, Adapter, TV power supply and PC power supply etc.
Product information
Specifications, documents and sourcing support for MOT30N03C.
Technical specifications
Parametric data for product selection and design review.
- Cargo Status
- Active
- Supplier Device Package
- TO-251
- BVDSS
- 30
- ID[A](25℃)
- 30
- VGS(th)[V](max)
- 2.2
- Rds(on) [ mohm] at Vgs=10V（TYP)
- 9.7
- Rds(on) [ mohm] at Vgs=10V（MAX)
- 15
Overview & applications
Product positioning and recommended use cases.

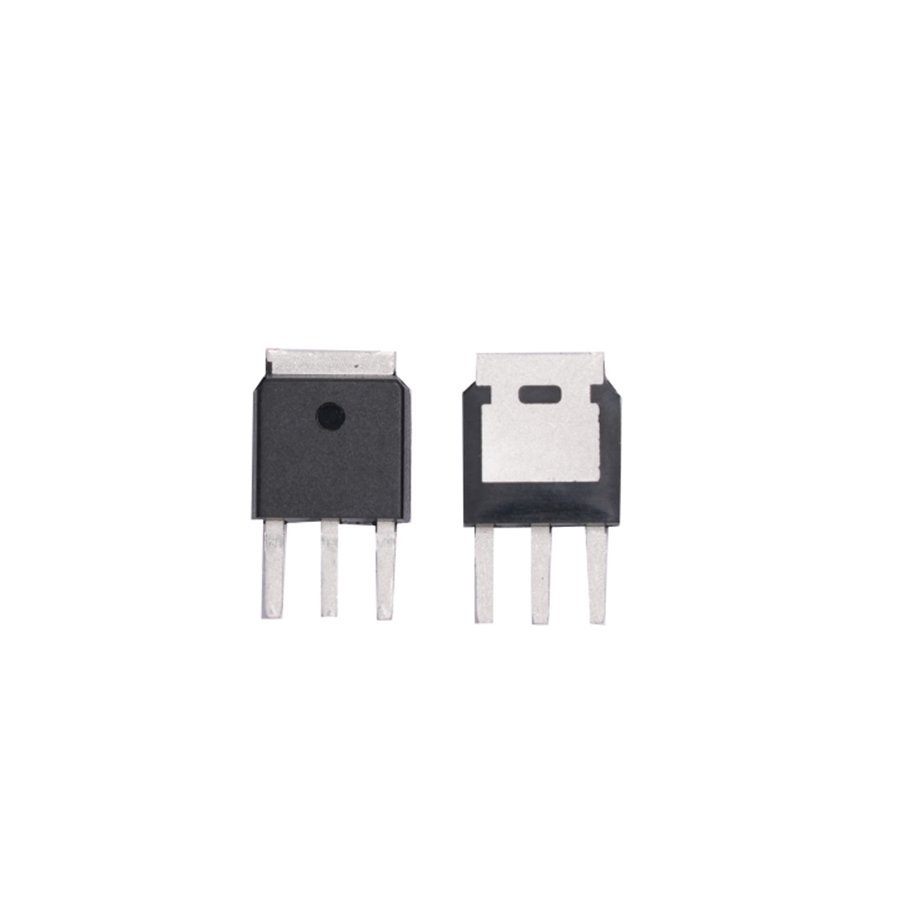

MOSFET N 30V 30A 9.7 TO-251
MOT30N03C is a low-voltage and high-power N-Channel Mosfet with VDS at 30V and ID at 30A. It has many benefits such as large package size, quick switching speed, low gate drive current, and high input impedance. Those highlight its cost-effective during the applications in vavious electronic devices, especially in situations where fast switching on-off and efficient energy conversion are required. It is mainly used for BMS battery protection, load switch, UPS applications.
Cross reference
Common market parts that may be evaluated against this MOT device.
| Manufacturer | Market part number | MOT part number |
|---|---|---|
| onsemi（原Fairchild） | FDD5N030 | MOT30N03C |
| Nexperia | PSMN4R0-30YLDX | MOT30N03C |
| Vishay | Si7860DP | MOT30N03C |
| ROHM | HAT2168H | MOT30N03C |
| 扬杰科技（YJ） | YJC30N03C | MOT30N03C |
| 华润微（CRMC） | CRMC30N03C | MOT30N03C |
| 东海半导体（WXDH） | WNSC3009TN | MOT30N03C |
Cross references are a starting point for evaluation. Confirm electrical and package compatibility in the datasheets before design-in.
