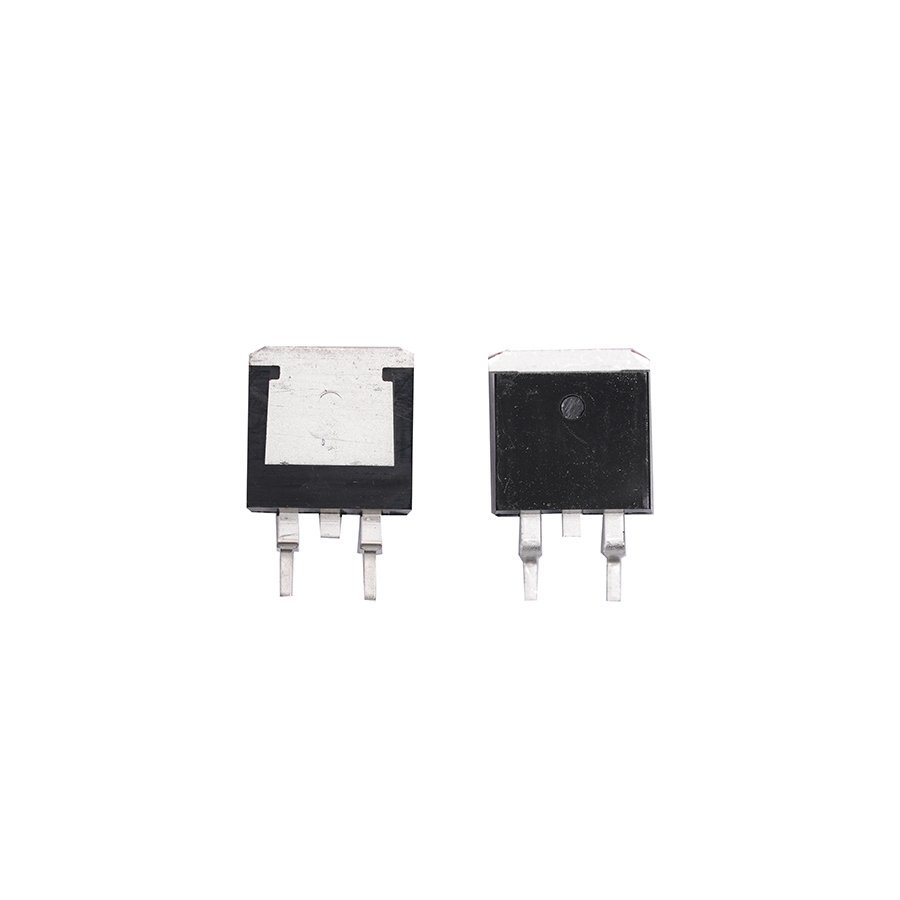

MOT3136E
It is widely used in various application fields such as PD, adapter, wireless charger, EV charger and power bank, etc.
Product information
Specifications, documents and sourcing support for MOT3136E.
Technical specifications
Parametric data for product selection and design review.
- Cargo Status
- Active
- Supplier Device Package
- TO-263
- BVDSS
- 30
- ID[A](25℃)
- 120
- VGS(th)[V](max)
- 3
- Rds(on) [ mohm] at Vgs=10V（TYP)
- 4
- Rds(on) [ mohm] at Vgs=10V（MAX)
- 5
Overview & applications
Product positioning and recommended use cases.
MOSFET N 120V 30A 4 TO-263
MOT3136E is a low-voltage and high-power N-Channel Mosfet with VDS at 30V and ID at 120A. The MOSFET is with low RDS(on), large package size, large ID current, and low Qg(nC), and cost-effective. It is widely used for DC power supplies, UPS, etc.
Cross reference
Common market parts that may be evaluated against this MOT device.
| Manufacturer | Market part number | MOT part number |
|---|---|---|
| STMicroelectronics | STB60NF12L | MOT3136E |
| Vishay（原IR） | IRFB4115S | MOT3136E |
| 扬杰科技（YJ） | YJE120N02AE | MOT3136E |
| 华润微（CRMC） | CRMC120N02AE | MOT3136E |
Cross references are a starting point for evaluation. Confirm electrical and package compatibility in the datasheets before design-in.
