MOT3337G
It is widely used in various application fields such as wireless charger, EV charger and power bank, etc.
Product information
Specifications, documents and sourcing support for MOT3337G.
Technical specifications
Parametric data for product selection and design review.
- Cargo Status
- Active
- Supplier Device Package
- PDFN5*6
- BVDSS
- -30
- ID[A](25℃)
- -60
- VGS(th)[V](max)
- -2.1
- Rds(on) [ mohm] at Vgs=10V（TYP)
- 3
- Rds(on) [ mohm] at Vgs=10V（MAX)
- 3.7
Overview & applications
Product positioning and recommended use cases.

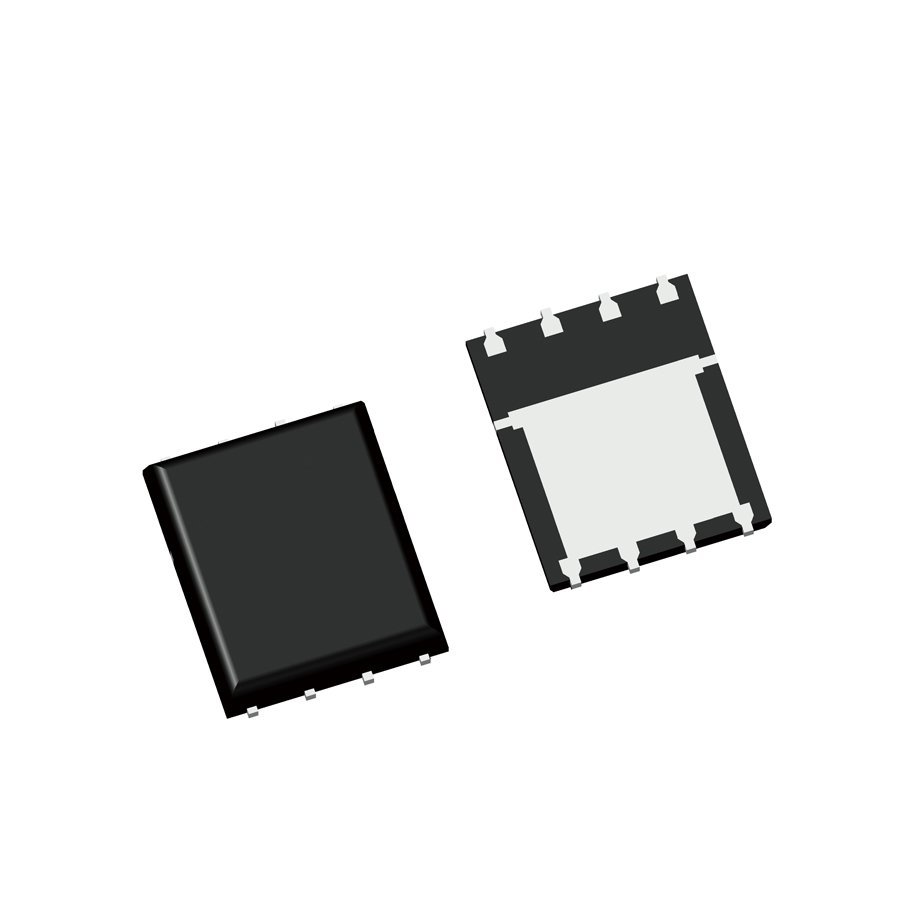

MOSFET P -60V -30A 3 PDFN5*6
MOT3337G is a low-voltage P-Channel Mosfet with VDS at -30V and ID at -60A. The MOSFET is with low RDS(on), PDFN5X6 large package, large ID current, and low Qg(nC), and cost-effective. It is widely used for PWM applications, load power switches,etc.
Cross reference
Common market parts that may be evaluated against this MOT device.
| Manufacturer | Market part number | MOT part number |
|---|---|---|
| Alpha&Omega (AOS) | AON7400A | MOT3337G |
| Nexperia | PSMN3R0-60YLDX | MOT3337G |
| 扬杰科技（YJ） | YJG60P03G | MOT3337G |
| 华润微（CRMC） | CRMC60P03G | MOT3337G |
Cross references are a starting point for evaluation. Confirm electrical and package compatibility in the datasheets before design-in.
