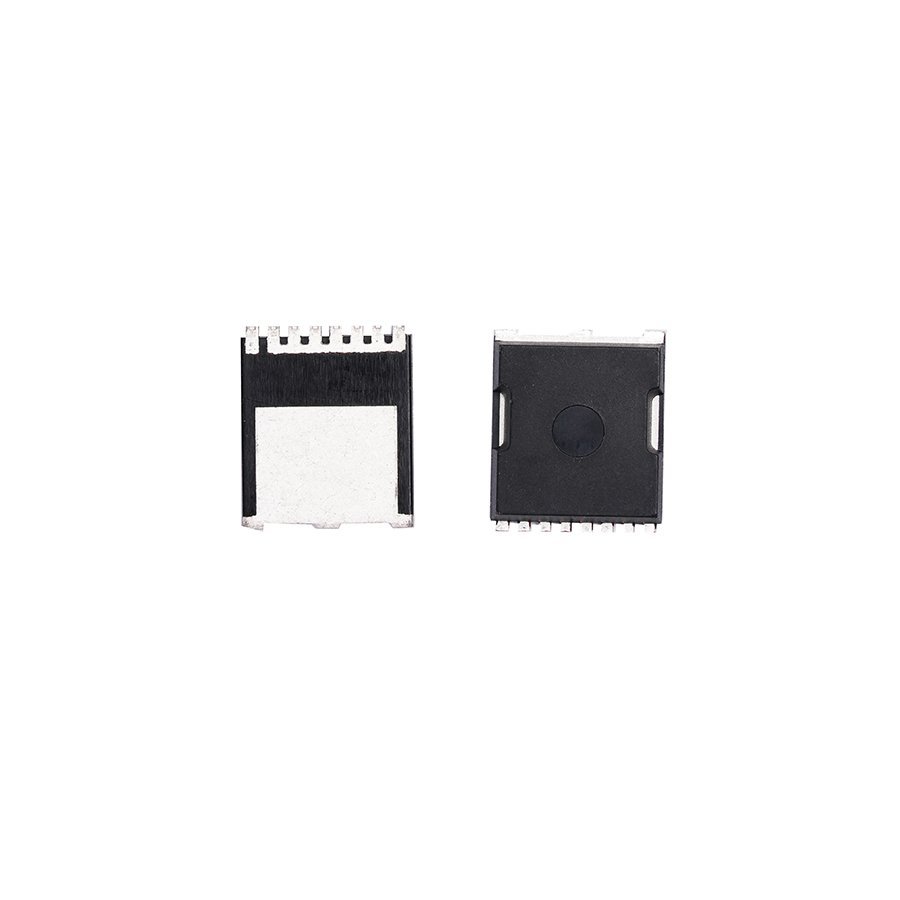

MOT4582HT
It is widely used for power tools, electric scooters, lawn mowers, outdoor energy storage cabinets ect.
Product information
Specifications, documents and sourcing support for MOT4582HT.
Technical specifications
Parametric data for product selection and design review.
- Product Status
- Active
- Supplier Device Package
- TOLL-8
- VDss[V](min)
- 40
- ID[A](25℃)
- 395
- VGS(th)[V](max)
- 4
- Rds(on) [ mohm] at Vgs=10V（TYP)
- 0.85
- Rds(on) [ mohm] at Vgs=10V（MAX)
- 1
- Qg [nC] at 10V Typ
- 130
- Qgs [nC] Typ
- 27
- Qgd [nC] Typ
- 30
- Package
- Tape & Reel (TR)
- Mounting Type
- Surface Mount
- Vgs (Max)
- ±20V
- Power Dissipation Max(W)
- 250
MOT4582HT
Review electrical characteristics, package drawings and test conditions.
Overview & applications
Product positioning and recommended use cases.
MOSFET N-CH 395V 40A 0.85 TOLL-8
MOT4582HT is a low-voltage and high power N-Ch Toll package Mosfet with VDS at 40V and ID at 395A. It has a large package size, quick switching speed, low gate drive current and high input impedance. The Mosfet is used in various electronic devices, especially in situations that require fast switching and efficient energy conversion. It has a wide range of applications and is cost-effective. It is mainly used in high-power products such as BMS power battery protection, energy storage protection board, and load switch.
