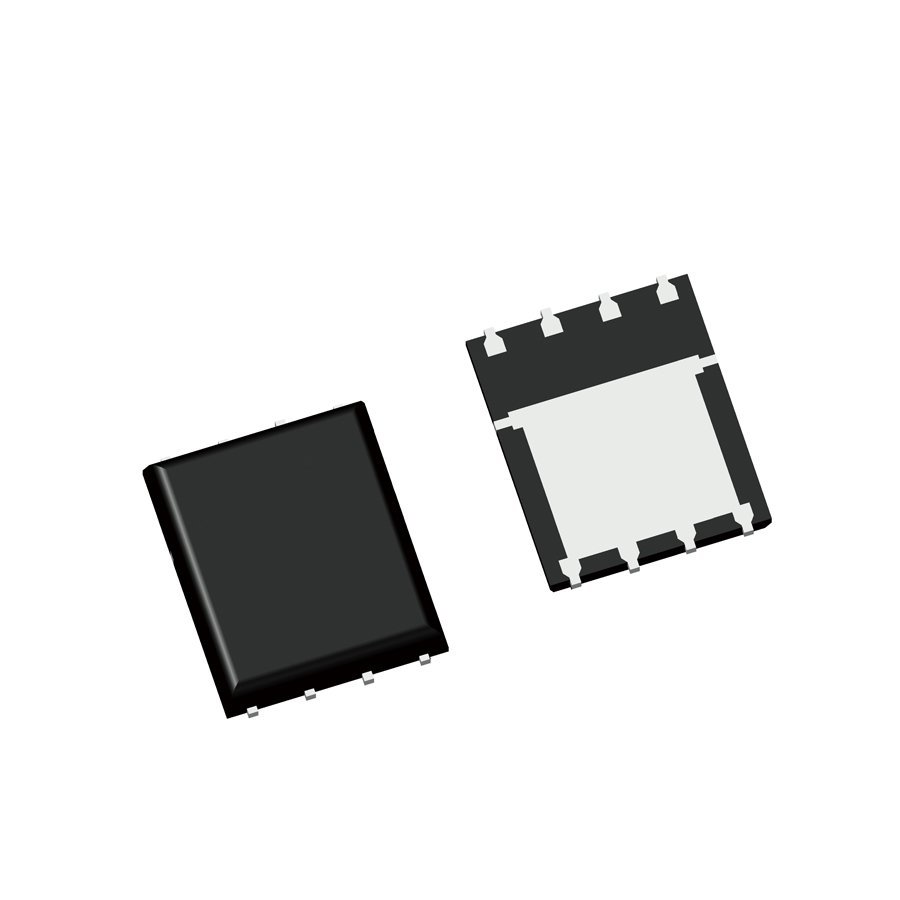

MOT6514G
It is widely used in various application fields such as PD, adapter, wireless charger, EV charger and power bank, etc.
Product information
Specifications, documents and sourcing support for MOT6514G.
Technical specifications
Parametric data for product selection and design review.
- Cargo Status
- Active
- Supplier Device Package
- PDFN5*6
- BVDSS
- 60
- ID[A](25℃)
- 50
- VGS(th)[V](max)
- 2.5
- Rds(on) [ mohm] at Vgs=10V（TYP)
- 11
- Rds(on) [ mohm] at Vgs=10V（MAX)
- 14
Overview & applications
Product positioning and recommended use cases.
MOSFET N 50V 60A 11 PDFN5*6
MOT6514G is a low voltage N-Channel Mosfet with VDS at 60V and ID at 50A. The MOSFET is with large package size, low RDS(on), large ID current, low Qg(nC) and cost-effective. It is widely used for DC power supplies.
Cross reference
Common market parts that may be evaluated against this MOT device.
| Manufacturer | Market part number | MOT part number |
|---|---|---|
| Alpha&Omega (AOS) | AON6516A | MOT6514G |
| Nexperia | PSMN011-50YLDX | MOT6514G |
| 扬杰科技（YJ） | YJG50N11G | MOT6514G |
| 华润微（CRMC） | CRMC50N11G | MOT6514G |
Cross references are a starting point for evaluation. Confirm electrical and package compatibility in the datasheets before design-in.
Talk to an application engineer
Send us your target specifications, quantity and application. Our engineering team will follow up through the Contact Us page.
