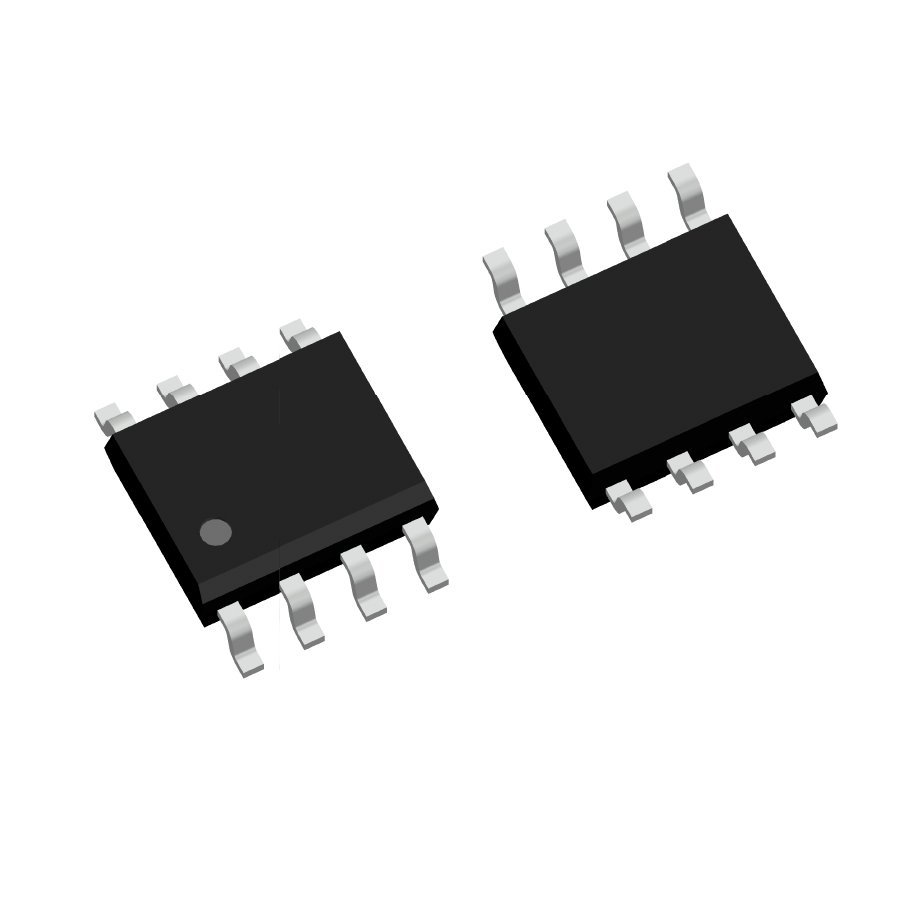

MOT6515S
Status：
Package Type：
Category：
Item Description：
Datasheet：
Product Attributes
| Category | Medium/Low Trench SGT MOS |
| Supplier Device Package | SOP8 |
| BVDSS | 60 |
| ID[A](25℃) | 12.7 |
| VGS(th)[V](max) | 2.5 |
| Rds(on) [ mohm] at Vgs=10V（TYP) | 14 |
| Rds(on) [ mohm] at Vgs=10V（MAX) | 15 |
| Rds(on) [ mohm] at Vgs=4.5V（TYP) | 17 |
| Rds(on) [ mohm] at Vgs=4.5V（MAX) | 19 |
| Rds(on) [ mohm] at Vgs=2.5V（TYP) | |
| Rds(on) [ mohm] at Vgs=2.5V（MAX) | |
| Qg [nC] at 10V Typ | 13 |
| Qgs [nC] Typ | 1.6 |
| Cargo Status | Active |
| Cargo Status | Active |
| Qgd [nC] Typ | 3.1 |
| Configuration | N |
| Package Type | Tape & Reel (TR) |
| Technology | MOSFET (Metal Oxide) |
| Mounting Type | Surface Mount |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Rds On (Max) @ Id, Vgs | 16.5mOhm @ 10A, 10V |
| Vgs(th) (Max) @ Id | 2.5V @ 250µA |
| Gate Charge (Qg) (Max) @ Vgs | 72 nC @ 10 V |
| Vgs (Max) | ±20V |
| Input Capacitance (Ciss) (Max) @ Vds | 2200 pF @ 20 V |
| Power Dissipation (Max)(W) | 3 |
Product Description
MOT6515S is a low voltage N-Channel Mosfet with VDS at 60V and ID at 12.7A. The MOSFET is with large package size, low RDS(on), large ID current, low Qg(nC) and cost-effective. It is widely used for DC power supplies.
Documents and Media
Datasheet
Product Application Areas
It is widely used in various application fields such as PD, adapter, wireless charger, EV charger and power bank, etc.
