MOT6915G
It is widely used in various switching mode power supply applications.
Product information
Specifications, documents and sourcing support for MOT6915G.
Technical specifications
Parametric data for product selection and design review.
- Cargo Status
- Active
- Supplier Device Package
- PDFN5*6
- BVDSS
- 60
- ID[A](25℃)
- 30
- VGS(th)[V](max)
- 2.5
- Rds(on) [ mohm] at Vgs=10V（TYP)
- 11
- Rds(on) [ mohm] at Vgs=10V（MAX)
- 15
MOT6915G
Review electrical characteristics, package drawings and test conditions.
Overview & applications
Product positioning and recommended use cases.

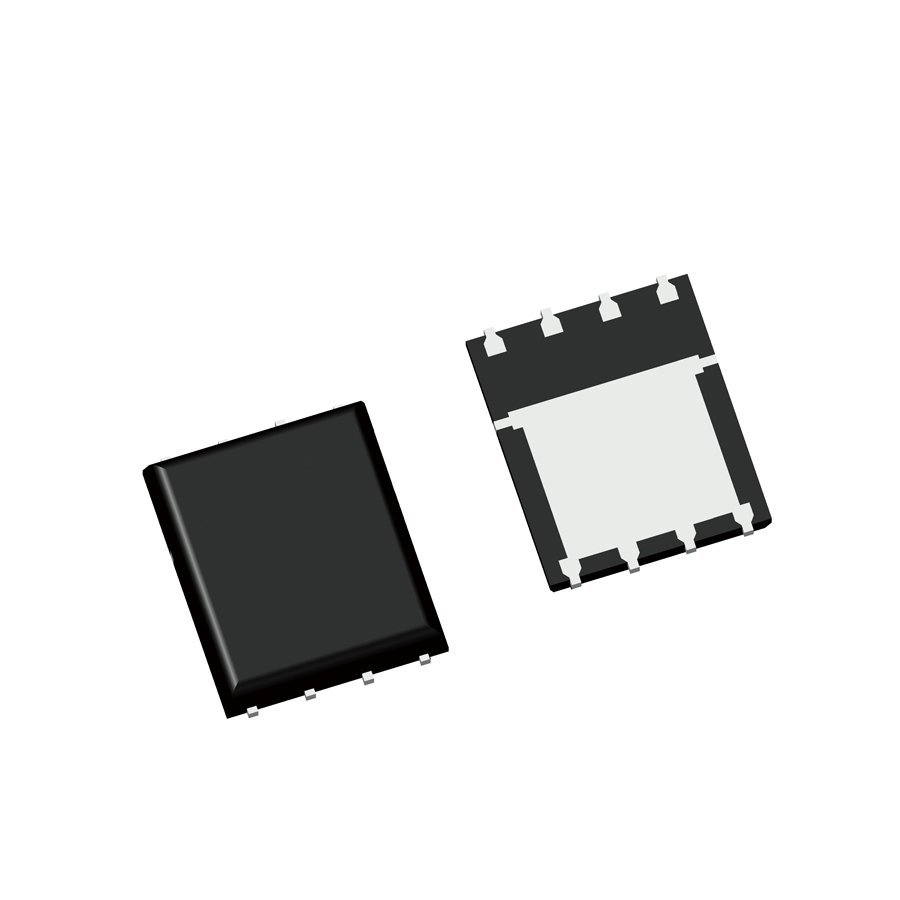

MOSFET N+N 30V 60A 11 PDFN5*6
MOT6915G is a low voltage N-Channel Mosfet with VDS at 60V and ID at 30A. The MOSFET is with large package size, low RDS(on), large ID current, low Qg(nC) and cost-effective. It is widely used for DC power supply.
Cross reference
Common market parts that may be evaluated against this MOT device.
| Manufacturer | Market part number | MOT part number |
|---|---|---|
| Alpha&Omega (AOS) | AON6404A | MOT6915G |
| Nexperia | PSMN011-30YLDX | MOT6915G |
| 扬杰科技（YJ） | YJG30NN11G | MOT6915G |
| 华润微（CRMC） | CRMC30NN11G | MOT6915G |
Cross references are a starting point for evaluation. Confirm electrical and package compatibility in the datasheets before design-in.
