MOT80CH020N
Designed for switch-mode power supplies, high-voltage DC/DC converters, battery chargers and motor drives.
Product information
Specifications, documents and sourcing support for MOT80CH020N.
Technical specifications
Parametric data for product selection and design review.
- Cargo Status
- Active
- Supplier Device Package
- TO-247
- ID(A)
- 120
- VDss[V]
- 800
- RDSON（MAX)(Ω)
- 26
- VGS(th)(V)
- 2-4.5
Overview & applications
Product positioning and recommended use cases.

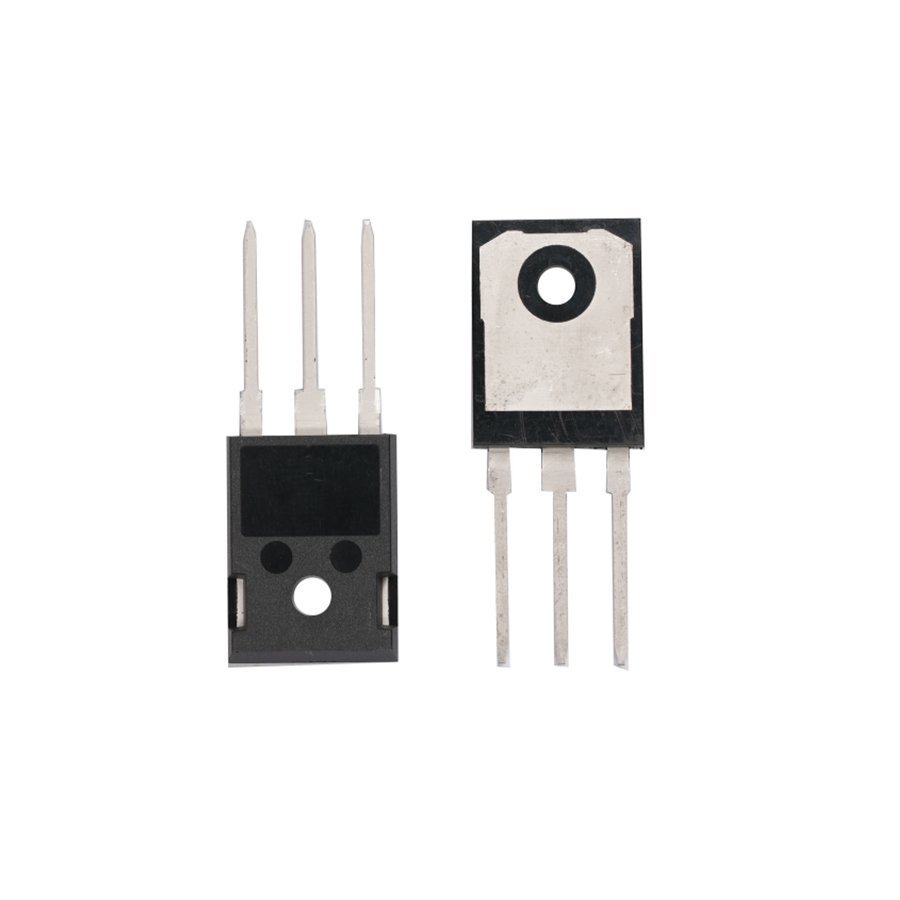

MOSFET 800V 120A 26 TO-247
MOT80CH020N is a power SiC MOSFET in TO-247, rated at 800 V and 120 A. Low on-resistance, low capacitance and fast switching support efficient high-voltage converters, chargers and motor drives.
Cross reference
Common market parts that may be evaluated against this MOT device.
| Manufacturer | Market part number | MOT part number |
|---|---|---|
| Infineon (CoolSiC) | IMZA120R020M1HXKSA1 | MOT80CH020N |
| Infineon (CoolSiC) | IMW120R020M1HXKSA1 | MOT80CH020N |
| STMicroelectronics | SCT004N120G3AG | MOT80CH020N |
| ROHM | SCT3017KW7 | MOT80CH020N |
| ROHM | SCT3022KW7 | MOT80CH020N |
| Wolfspeed | C3M0021120K | MOT80CH020N |
| onsemi | NTH4L002N120SC1 | MOT80CH020N |
| 泰科天润（GPT） | G3R020MT12K | MOT80CH020N |
| 基本半导体 | BD02120T2W | MOT80CH020N |
| GDsicsemi | GDS020N120N | MOT80CH020N |
| 至信微电子 | SD02120T2N | MOT80CH020N |
| 新洁能（NCE） | NCE12010N | MOT80CH020N |
Cross references are a starting point for evaluation. Confirm electrical and package compatibility in the datasheets before design-in.
