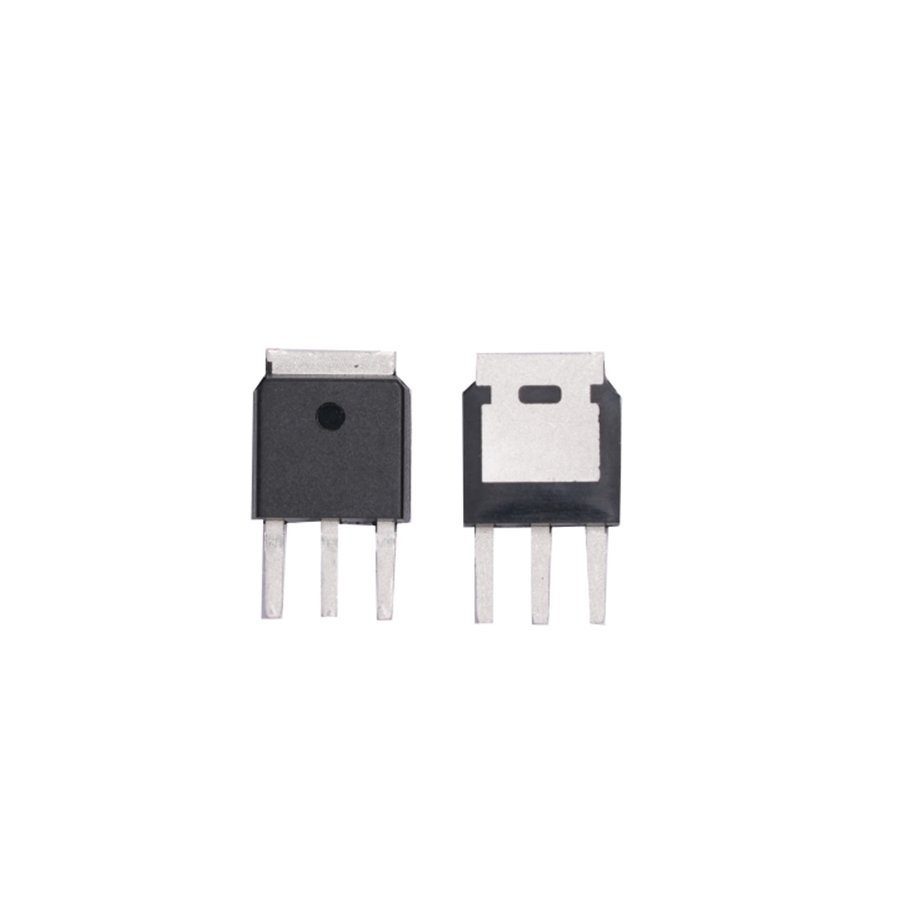

MOT80N03XC
It is widely used in various application fields such as BMS, Motor drive, LED Lighting, Adapter, TV power supply and PC power supply etc.
Product information
Specifications, documents and sourcing support for MOT80N03XC.
Technical specifications
Parametric data for product selection and design review.
- Cargo Status
- Active
- Supplier Device Package
- TO-251
- BVDSS
- 30
- ID[A](25℃)
- 80
- VGS(th)[V](max)
- 3
- Rds(on) [ mohm] at Vgs=10V（TYP)
- 4
- Rds(on) [ mohm] at Vgs=10V（MAX)
- 6
MOT80N03XC
Review electrical characteristics, package drawings and test conditions.
Overview & applications
Product positioning and recommended use cases.
MOSFET N 80V 30A 4 TO-251
MOT80N03XC is a low-voltage with high-power N- channel Mosfet with VDS at 30V and ID at 80A. The MOSFET is with low RDS(on), large ID current, large package size and low Qg(nC), and cost-effective. It is mainly used for DC power supplies, load power switches, BMS battery protection boards,etc.
Cross reference
Common market parts that may be evaluated against this MOT device.
| Manufacturer | Market part number | MOT part number |
|---|---|---|
| onsemi（原Fairchild） | FDD7N080X | MOT80N03XC |
| Nexperia | PSMN4R0-80YLDX | MOT80N03XC |
| Vishay | Si7838DP | MOT80N03XC |
| 扬杰科技（YJ） | YJC80N03XC | MOT80N03XC |
| 华润微（CRMC） | CRMC80N03XC | MOT80N03XC |
Cross references are a starting point for evaluation. Confirm electrical and package compatibility in the datasheets before design-in.
