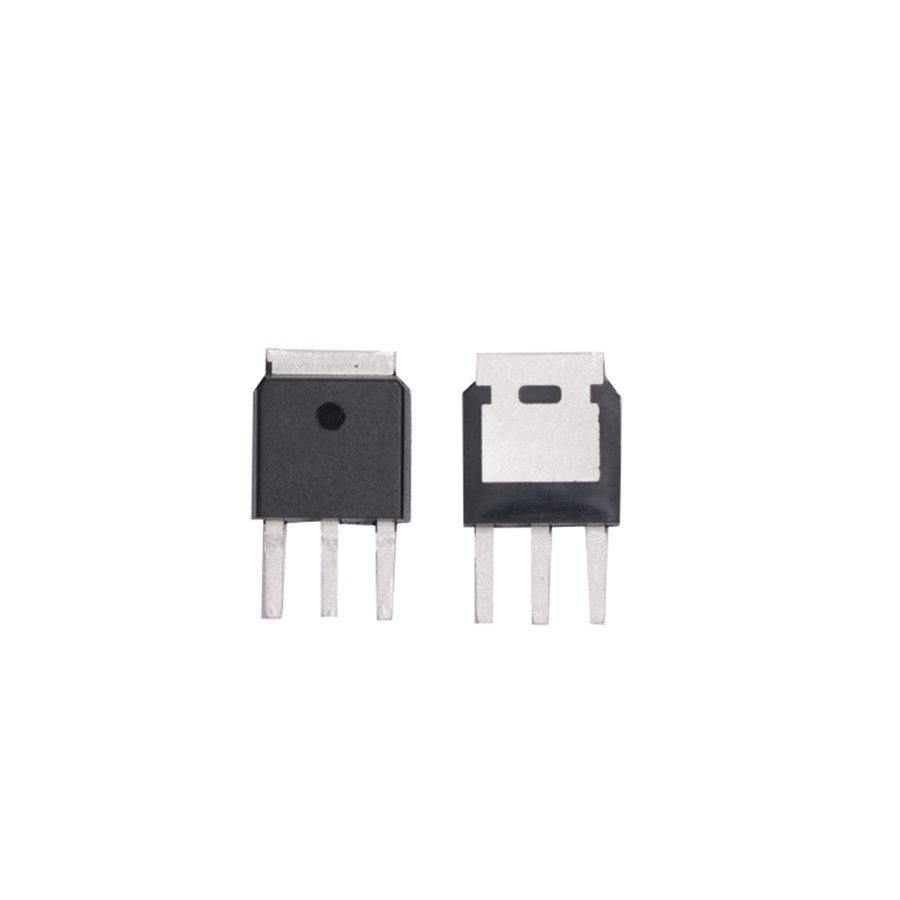

MOT80P03C
It is widely used in various application fields such as BMS, Motor drive, LED Lighting, Adapter, TV power supply and PC power supply etc.
Product information
Specifications, documents and sourcing support for MOT80P03C.
Technical specifications
Parametric data for product selection and design review.
- Cargo Status
- Active
- Supplier Device Package
- TO-251
- BVDSS
- -30
- ID[A](25℃)
- -80
- VGS(th)[V](max)
- 2.5
- Rds(on) [ mohm] at Vgs=10V（TYP)
- 5
- Rds(on) [ mohm] at Vgs=10V（MAX)
- 6
MOT80P03C
Review electrical characteristics, package drawings and test conditions.
Overview & applications
Product positioning and recommended use cases.
MOSFET P -80V -30A 5 TO-251
MOT80P03C is a high-power P-Channel Mosfet with VDS at -30V and ID at -80A. It has many benefits such as large package size, quick switching speed, low RDS(on), low gate drive current, and high input impedance. Those highlight its cost-effective during the applications in vavious electronic devices, especially in situations where fast switching on-off and efficient energy conversion are required. It is mainly used in TV set-top box and high-power frequency conversion products.
Cross reference
Common market parts that may be evaluated against this MOT device.
| Manufacturer | Market part number | MOT part number |
|---|---|---|
| Vishay | Si7457DP | MOT80P03C |
| onsemi（原Fairchild） | FDD7P080 | MOT80P03C |
| Nexperia | PSMN5R0-80YLDX | MOT80P03C |
| 扬杰科技（YJ） | YJC80P03C | MOT80P03C |
| 华润微（CRMC） | CRMC80P03C | MOT80P03C |
Cross references are a starting point for evaluation. Confirm electrical and package compatibility in the datasheets before design-in.
