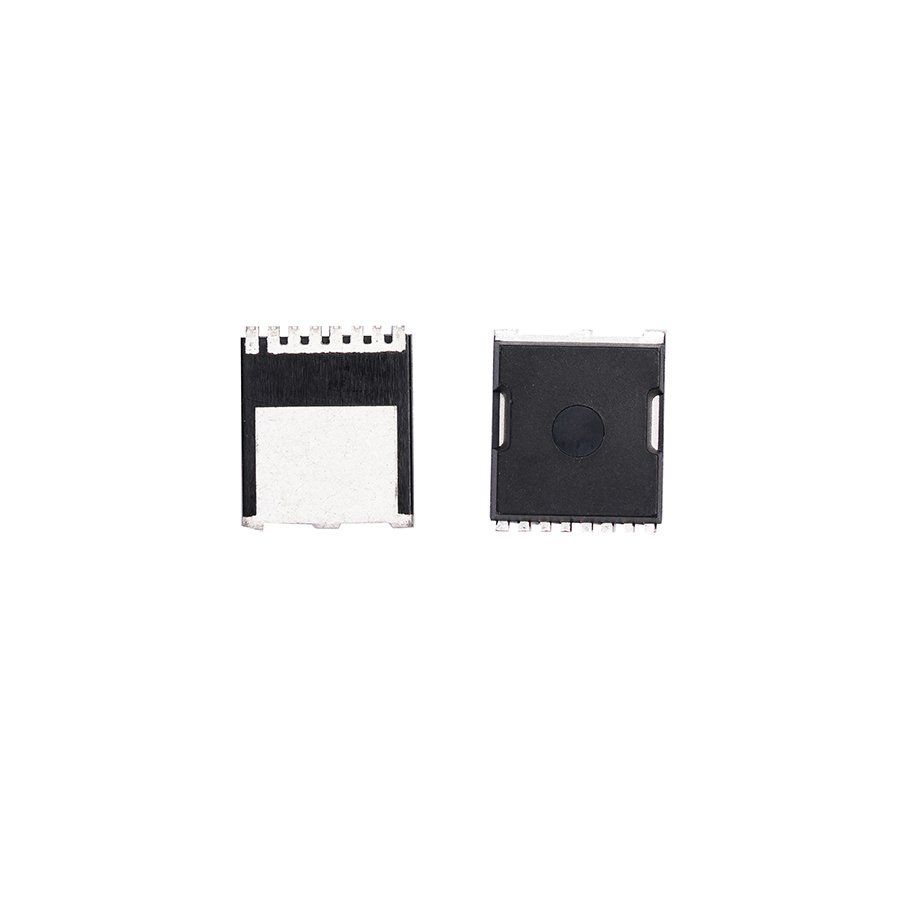

MOT8576T
It is widely used for power tools, electric scooters, lawn mowers, outdoor energy storage cabinets ect.
Product information
Specifications, documents and sourcing support for MOT8576T.
Technical specifications
Parametric data for product selection and design review.
- Supplier Device Package
- TOLL-8
- VDss[V](min)
- 80
- ID[A](25℃)
- 409
- VGS(th)[V](max)
- 4
- Rds(on) [ mohm] at Vgs=10V（TYP)
- 0.8
- Rds(on) [ mohm] at Vgs=10V（MAX)
- 1
- Qg [nC] at 10V Typ
- 200
- Qgs [nC] Typ
- 68
- Qgd [nC] Typ
- 41
MOT8576T
Review electrical characteristics, package drawings and test conditions.
Overview & applications
Product positioning and recommended use cases.
MOSFET N-CH 409V 80A 0.8 TOLL-8
MOT8576T is a low-voltage and high power N-Ch Toll package Mosfet with VDS at 80V and ID at 500A. It has a large package size, quick switching speed, low gate drive current and high input impedance. The Mosfet is used in various electronic devices, especially in situations that require fast switching and efficient energy conversion. It has a wide range of applications and is cost-effective. It is mainly used in high-power products such as BMS power battery protection, energy storage protection board, and load switch.
