MOT90N06A
Status：
Package Type：
Category：
Item Description：
Datasheet：
Product Attributes
| Category | Medium/Low Trench SGT MOS |

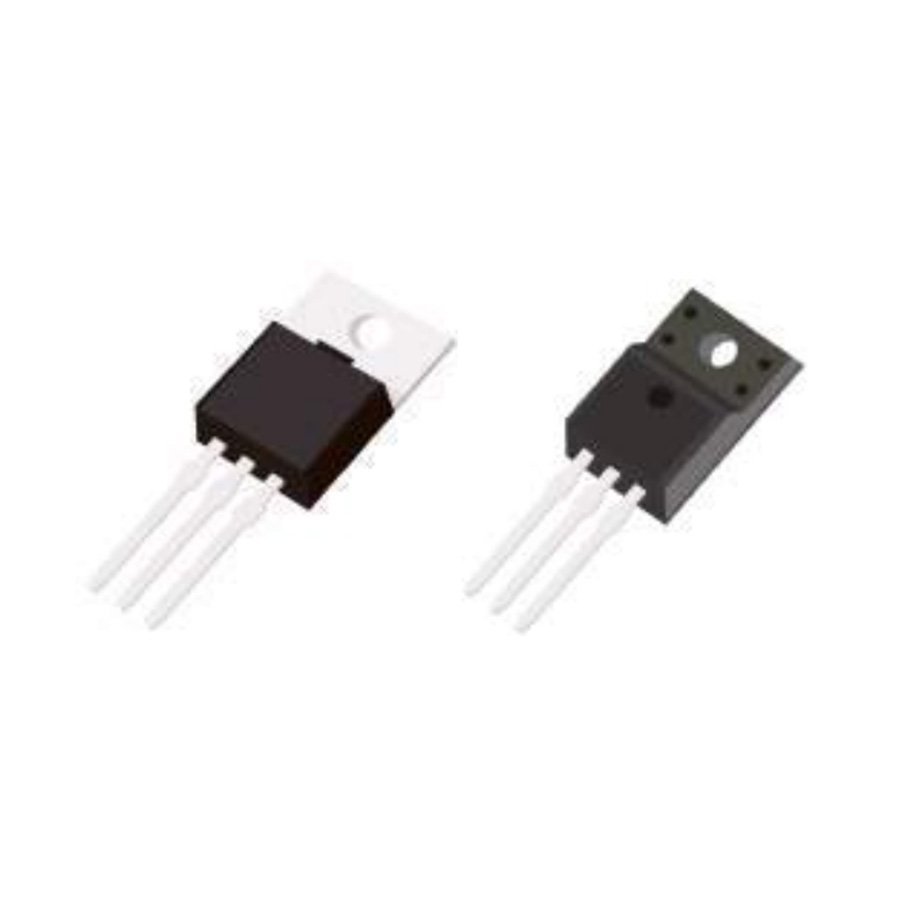

| Supplier Device Package | TO-220 |
| BVDSS | 60 |
| ID[A](25℃) | 90 |
| VGS(th)[V](max) | 2.5 |
| Rds(on) [ mohm] at Vgs=10V（TYP) | 6.7 |
| Rds(on) [ mohm] at Vgs=10V（MAX) | 8 |
| Rds(on) [ mohm] at Vgs=4.5V（TYP) | 8.2 |
| Rds(on) [ mohm] at Vgs=4.5V（MAX) | 9.8 |
| Rds(on) [ mohm] at Vgs=2.5V（TYP) | |
| Rds(on) [ mohm] at Vgs=2.5V（MAX) | |
| Qg [nC] at 10V Typ | 11.7 |
| Qgs [nC] Typ | 13.1 |
| Cargo Status | Active |
| Cargo Status | Active |
| Qgd [nC] Typ | 6.9 |
| Configuration | N |
| Package Type | Tube |
| Technology | MOSFET (Metal Oxide) |
| Mounting Type | Through Hole |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Rds On (Max) @ Id, Vgs | 8mOhm @ 30A, 10V |
| Vgs(th) (Max) @ Id | 2.5V @ 250µA |
| Gate Charge (Qg) (Max) @ Vgs | 11.7 nC @ 10 V |
| Vgs (Max) | ±20V |
| Input Capacitance (Ciss) (Max) @ Vds | 6940 pF @ 25 V |
| Power Dissipation (Max)(W) | 125 |
Product Description
MOT90N06A is a low-voltage with high-power N- channel Mosfet with VDS at 60V and ID at 90A. The MOSFET is with low RDS(on), large ID current, large package size and low Qg(nC), and cost-effective. It is mainly used for high-power DC supplies, load power switches, BMS battery protection boards,etc.
Documents and Media
Datasheet
Product Application Areas
It is widely used in various application fields such as BMS, Motor drive, LED Lighting, Adapter, TV power supply and PC power supply etc.
