Let me give you a vernacular metaphor first: an electronic cigarette is a "mini smoke making machine", the heating wire is a "fire-burning furnace wire", and the MOT2518J2 P-channel MOSFETs is the veteran of the furnace wire "igniting and turning off the fire" – it is hidden in the cigarette rod and does not show its head, but it directly determines whether the smoke you inhale is thick enough and whether the taste is smooth.
1. Voltage parameters: V=-15V, V=±12V – "voltage airbag" in low-voltage scenarios

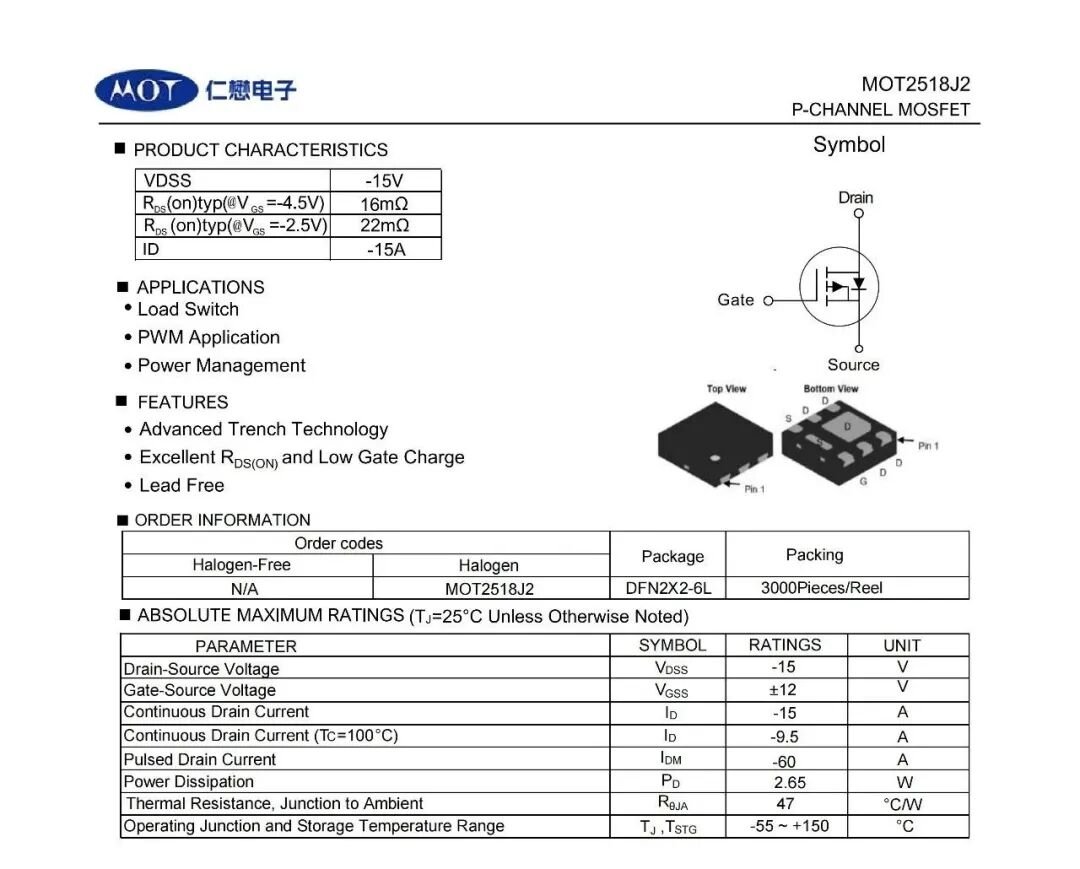

[Real specifications]: Drain-source breakdown voltage V=-15V (test conditions: V=0V, I=-250μA), gate-source voltage V=±12V, both are absolute maximum ratings, clearly marked in the "Electrical Characteristics" chapter of the specification.
E-cigarettes commonly use 3. 7V lithium batteries, and the full charge is only 4. 2V. For the MOT2518J2, it is "drinking a small amount of electricity" without any pressure; however, a "voltage spike" (peak) will occur at the moment when the heating wire is turned off. This product's -15V withstand voltage is equivalent to installing an airbag on itself, with a safety margin of more than 3 times. No matter how much the spikes are, it will not be broken down. " "Blow up the pipe" and don't engage in false standards.

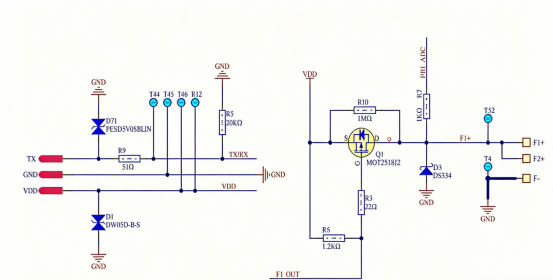

[E-cigarette application]: Adapts to the 3. 3V/5V MCU commonly used in e-cigarettes (such as STM32, RJM8L003) to drive directly, without the need for additional drivers – saving space and cost, which is simply "gospel" for disposable e-cigarettes. No longer will the voltage fluctuation cause the user to suddenly feel "tasteless" halfway through the inhalation, leaving the user with a full experience.
2. Current parameters: I=-15A, I=-60A – the strong confidence that "the power will not stop even if the power is strong"
[Specifications]: Continuous drain current I=-15A at 25°C, and can still stably carry -9. 5A at high temperatures of 100°C (pulse drain current I=-60A, short-term transient carrying capacity is directly full, fully matching the impact demand of e-cigarettes for large puffs of inhalation.
[FAE vernacular]: The current demand of electronic cigarettes is "high and low" – 1~2A for small puffs, 3~5A for big puffs (transient). A single MOT2518J2 can easily handle it. There is no need to connect multiple units in parallel to "work in a team", and the price/performance ratio is directly maximized.
[E-cigarette application]: Whether it is a disposable or rechargeable e-cigarette, a single e-cigarette can handle all inhalation scenarios. It will no longer cause the MOSFETs to burn out and the e-cigarette to "break down" due to frequent puffs by the user.
3. Conductive characteristics: R as low as 16mΩ – the best skill of "saving power and not burning your mouth"
[Specification book actual hammer]: When V=-4. 5V, I=-3. 7A, the on-resistance R has a typical value of 16mΩ (maximum value 22mΩ); when V=-2. 5V, I=-2A, the typical value is 22mΩ (maximum value 30mΩ), the increase is controllable at high temperatures, and the curve in Figure 3 of the specification book can be directly verified.
[FAE vernacular]: MOSFETs conduction is like "current passing through the road". The smaller R is, "the wider the road and the smaller the resistance. " When the current passes through, less electricity is wasted and less heat is generated. The MOSFETs and heating wire of an e-cigarette are squeezed into a small cigarette rod. Once the heat is severe, it will not only consume electricity, but also burn your mouth. The low on-resistance of 16mΩ is equivalent to opening a "high-speed channel" for current, without traffic jams, no electricity consumption, and no heat.
[E-cigarette application]: Low internal resistance means two major benefits: First, it saves power. A disposable e-cigarette can take 50 to 80 more puffs, making the user happy; second, it generates low heat, which will not burn the cigarette holder to the point of screaming, nor will it burn out the surrounding MCU and battery, reducing malfunctions.
4. Fast switching speed allows MOT2518J2 to accurately follow PWM signals
[Real specifications]: Turn-on delay t=7ns, rise time t=17ns, total gate charge Qg=36nC (V=-4. 5V), Miller charge Q=2. 2nC, switch response speed fully adapts to the high-frequency PWM drive requirements of electronic cigarettes, the "Dynamic Characteristics" chapter of the specification is clearly written.
[FAE vernacular]: Electronic cigarettes rely on the MCU to output a 20~50kHz PWM signal to control the temperature, which is equivalent to making the MOSFETs "switch on and off tens of thousands of times per second" to quickly adjust the temperature of the heating wire – this requires the MOSFETs to "react quickly", and the MCU cannot issue an "ignition command" and it will still linger. The turn-on delay of MOT2518J2 is only 7ns, which is faster than the delivery boy arriving at the store after taking the order. The Qg is also low, and the switch is effortless and does not delay.
[Electronic cigarette application]: The fast switching speed allows the MOT2518J2 to accurately follow the PWM signal, without the embarrassment of "sucking a strong puff, taking a weak puff", and the taste is always smooth. Moreover, low Qg can not only reduce switching losses and save power, but also reduce electromagnetic interference and will not interfere with the MCU's current sampling circuit – avoiding dry burning and burning your mouth. Users can rest assured that we don't have to deal with a lot of "poor taste" after-sales service, so worry-free!
5. Packaging and thermal characteristics: DFN2X2-6L+R=47℃/W – "Small body with large heat dissipation"
[Real specifications]: It adopts DFN2X2-6L package (size 2. 0×2. 0×0. 75mm), junction to ambient thermal resistance R=47℃/W, complies with ROHS environmental standards, 3000 pieces/roll packaging meets the mass production needs of disposable electronic cigarettes, the package size table of the specification can be directly queried, and it has a solid small body.
[FAE vernacular]: The space of the electronic cigarette rod is so small that "every inch of land is precious", the PCB board is usually ≤10×20mm, and the MOSFETs cannot be inserted at all if it is "burly". The DFN2X2-6L package of MOT2518J2 is 30% smaller than the traditional SOT-23 package, which is equivalent to a "mini cannon". The exposed bottom plate design can also improve heat dissipation. The small body has large energy and will not cause "heatstroke" (overheating) due to crowding.
[E-cigarette application]: Easily plug into the electronic cigarette micro PCB to help make the electronic cigarette lighter, thinner and more refined. There is no need to expand the size of the cigarette rod to install the MOSFETs. With a low thermal resistance of 47℃/W and low conduction loss, even if the user inhales 10 times in a row, the temperature rise of the MOSFETs can be controlled within a safe range – it will not trigger protection and stop heating due to overheating, ensuring continuous use experience. More importantly, the DFN package adapts to the automatic welding of the placement machine, and the production yield is high. The packaging of 3, 000 pieces/roll also meets the mass production needs of disposable e-cigarettes. The mass production boss is ecstatic, and the cost is directly reduced!
6. Leakage current: I≤-1μA – the worry-free player of "no power stealing in standby"
[Real hammer from the specification]: When V=-15V, V=0V, the maximum drain-source leakage current I is ≤-1μA, the gate-source leakage current is ≤±100nA, and the standby loss is almost negligible. The "Electrical Characteristics" in the specification is clearly marked, no word games.
[FAE vernacular]: When the electronic cigarette is on standby, the MOS control must "observe the rules" and cannot leak current secretly – just like people cannot secretly consume power while sleeping. Otherwise, if the user does not smoke for a few days and then picks up the e-cigarette, it will run out of power, and he will definitely complain. The leakage current of MOT2518J2 is so small that it can be ignored, which is worry-free and reliable.
[E-cigarette application]: For a 3. 7V/500mAh disposable e-cigarette battery, the loss caused only by MOSFETs leakage current is less than 0. 01mAh per month, which does not affect normal use at all. It will not affect the experience due to "stealing power" and also reduces after-sales complaints of "battery not durable".
Summary: The core advantages of MOT2518J2 (all based on specifications + actual testing)
1. [Space Saving] DFN2X2-6L mini package, even the smallest amount of PCB space can be easily inserted, helping to make the e-cigarette thinner and thinner without wasting any space;
2. [Save electricity costs] 16mΩ low on-resistance + ≤1μA leakage current, low power consumption, long battery life, disposable e-cigarettes can be smoked dozens more times, and user satisfaction is high;
3. [Stabilize the taste] The switch response is fast, the temperature control is accurate, the smoke is even and does not become thick or light, and there is no need to burn your mouth or dry burning, and the experience is full;
4. [High reliability] 15A continuous current + 60A transient current, no need to stop even if you suck heavily; -15V withstand voltage + low thermal resistance, not afraid of high temperatures and voltage spikes, fewer failures, FAE worry-free;
5. [High cost-effectiveness] A single chip can handle all working conditions, without parallel connection, simplifying the design; automated welding + batch packaging, low mass production costs, and the boss is satisfied.
