MoTA618D product characteristics and application advantages
MoTA618D characteristics
- Activate currents as low as <5uA
- The built-in BJT is up to 800 V.
- Chip energy efficiency up to level 6 with only 75 mW on-call energy
- Adjustment of Cable Line Loss Compensation through Emplacement (68/45uA)
- Internal Front Line Discovery (350ns)
- Wide working temperature range: -65~150°C
- Good output characteristics: > 5% CC, CV precision
- Encapsulation: 8 foot SOP-8 and SOP-7 for P2 P
- Internally contained overtow protection, heat protection, CS/FB diversion/short circuit protection, output under pressure protection
MOTA618D application area:
12W small power power source adapter
Fan lamp ADDC power
Water heater ignition and led showing power supply ACDC
Main parameters –
The Advantage of Mota 618D
1. Low utility
MOTA618D has low-power characteristics, with a start-up current as low as 5uA that allows it to further reduce power consumption and increase the rate of conversion of electricity in low-power power applications.
2. Internal BJT
MOT MOTA 618D has been internalized into BJTs of up to 800 V, allowing it to reduce peripherals and PCB space in PSR power circuits.
3. Integration of multiple functions
MOT MOTA 618D including VCC overpressure protection, output overpressure protection, output underpressure protection, secondary Shortway protection, CS/FB led foot/shortway protection, temperature protection, etc.
4. Electricity component
MOTA618D has the capability of adjusting Cable Line Loss Compensation (68/45uA) through an external installation, which allows Bin-MOTA618D to achieve stabilization applications
5. Working environment temperature
The wide working temperature (-65 ~150 °C) of Binya MOTA618D allows it to operate in relatively harsh environments.
6. Seal
MOT MOTA 618D with 8 foot SOP-8 and SOP-7 seals to achieve P2 P

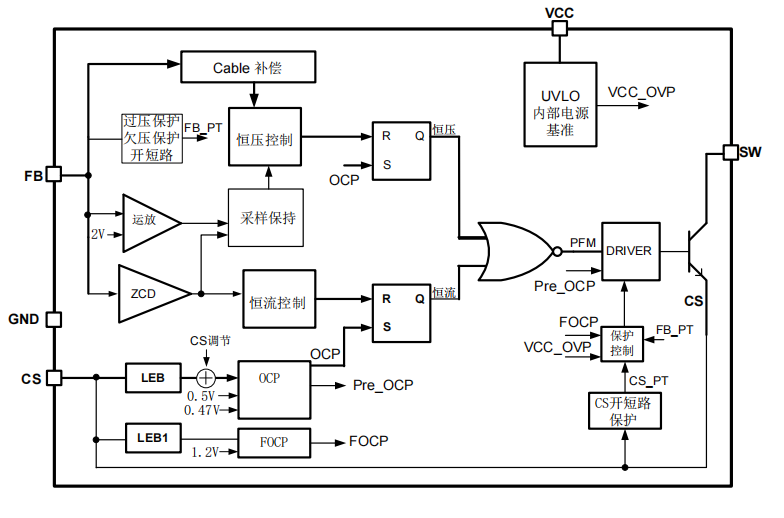

MoTA 618D internal structure
