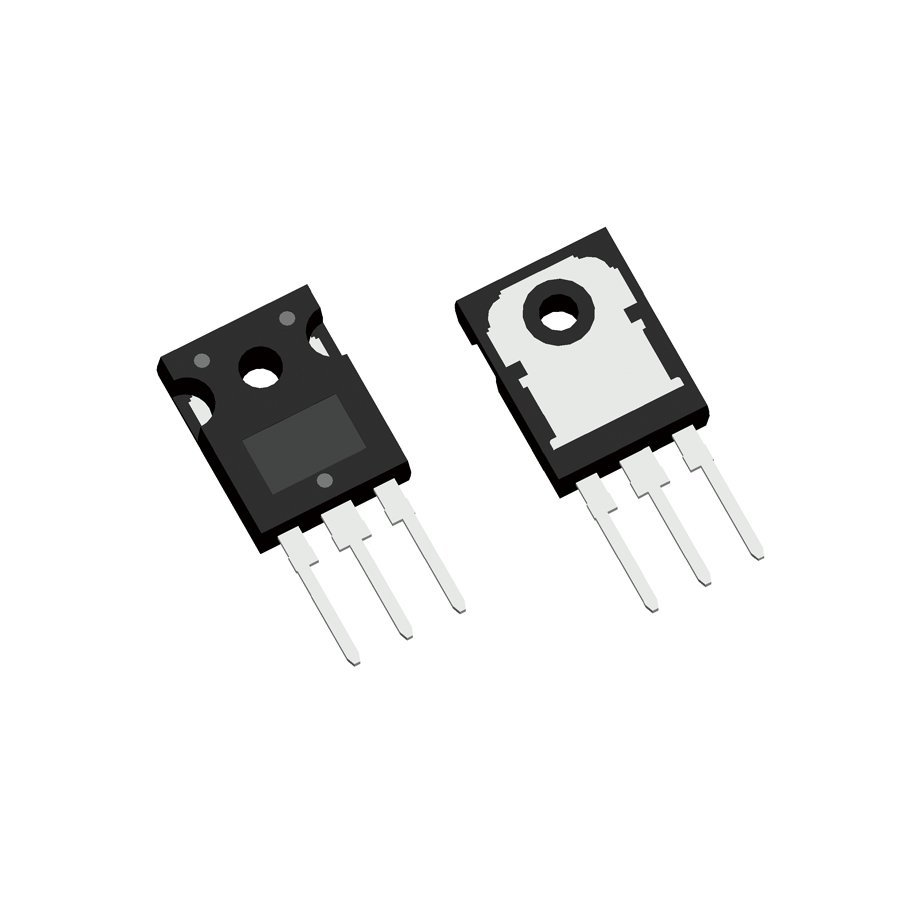

2SC3320W
It is widely used in computer control, robot control, power control, instrument panel control, energy-saving lamps, computer power supplies, mobile phone chargers and other equipment.
Product information
Specifications, documents and sourcing support for 2SC3320W.
Technical specifications
Parametric data for product selection and design review.
- Cargo Status
- Active
- Supplier Device Package
- TO-247S
- Ic(A)
- 15
- BVCBO(V)
- 500
- BVCEO(V)
- 400
- BVEB(V)
- 7
- HFE
- 20-80
- TS(nS)
- -
Overview & applications
Product positioning and recommended use cases.
TRANS 500V 15A 7V TO-247S
2SC3320W has high voltage resistance, high current carrying capacity, fast switching speed, and low saturation voltage drop. It is widely used in general power amplifiers, inverters, switching power supplies, etc.
Cross reference
Common market parts that may be evaluated against this MOT device.
| Manufacturer | Market part number | MOT part number |
|---|---|---|
| Toshiba | 2SC3320 | 2SC3320W |
| Toshiba | 2SC3320A | 2SC3320W |
| STMicroelectronics | BUH315 | 2SC3320W |
| onsemi | MJE8503 | 2SC3320W |
| Sanken | 2SC3320 | 2SC3320W |
| Renesas（NEC） | 2SC3320 | 2SC3320W |
| KEC | KSC3320 | 2SC3320W |
| 扬杰科技（YJ） | 2SC3320W | 2SC3320W |
| 长电科技（JCET） | 2SC3320W | 2SC3320W |
| 华润微（CRMC） | 2SC3320W | 2SC3320W |
| 苏州固锝（ARC） | 2SC3320W | 2SC3320W |
Cross references are a starting point for evaluation. Confirm electrical and package compatibility in the datasheets before design-in.
