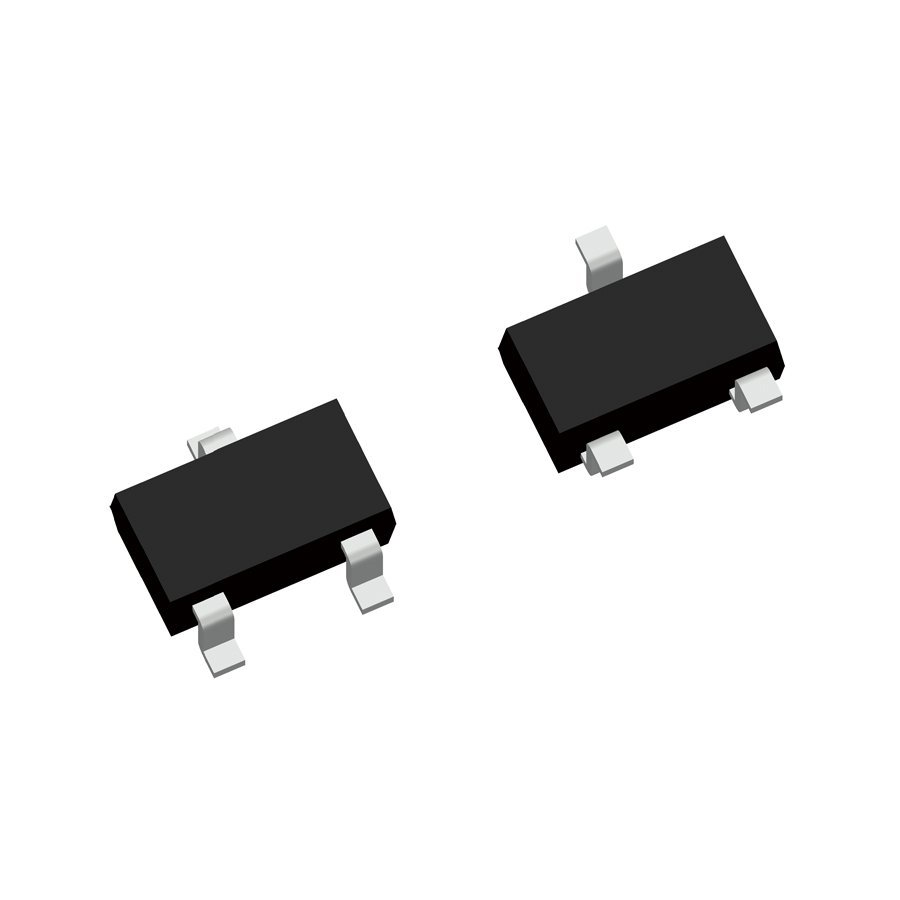

MOT1N50A3
Status：
Package Type：
Category：
Item Description：
Datasheet：
Product Attributes
| Category | Small Signal Mosfet |
| Supplier Device Package | SOT-23A-3L |
| VDss[V](min) | |
| ID[A](25℃) | 1 |
| VGS(th)[V](max) | 3.5 |
| Rds(on) [ mohm] at Vgs=10V（TYP) | 8500 |
| Rds(on) [ mohm] at Vgs=10V（MAX) | 10000 |
| Rds(on) [ mohm] at Vgs=4.5V（TYP) | |
| Rds(on) [ mohm] at Vgs=4.5V（MAX) | |
| Rds(on) [ mohm] at Vgs=2.5V（TYP) | |
| Rds(on) [ mohm] at Vgs=2.5V（MAX) | |
| Qg [nC] at 10V Typ | 6.2 |
| Qgs [nC] Typ | 0.5 |
| Qgd [nC] Typ | 4.7 |
| Configuration | Single_N |
| Package Type | |
| Technology | |
| Mounting Type | |
| Operating Temperature | |
| FET Type | |
| Rds On (Max) @ Id, Vgs | |
| Vgs(th) (Max) @ Id | |
| Gate Charge (Qg) (Max) @ Vgs | |
| Vgs (Max) | |
| Input Capacitance (Ciss) (Max) @ Vds | |
| Power Dissipation (Max) |
Product Description
MOT1N50A3 is a 500V N MOS with an ID current of 1A. It is a very commonly used MOS product on the market. It has the characteristics of small size, light weight, stability and reliability, low on-state internal resistance and high current carrying capacity, and low price. It is widely used in power supplies, electronic cigarettes, motor drives, and LED drive circuits, and is particularly suitable for high performance, miniaturization and low power consumption.
Documents and Media
Datasheet
📑 Datasheet
Product Application Areas
Applicable to 2.4G remote control cars, electric toys, desk lamps, router products
