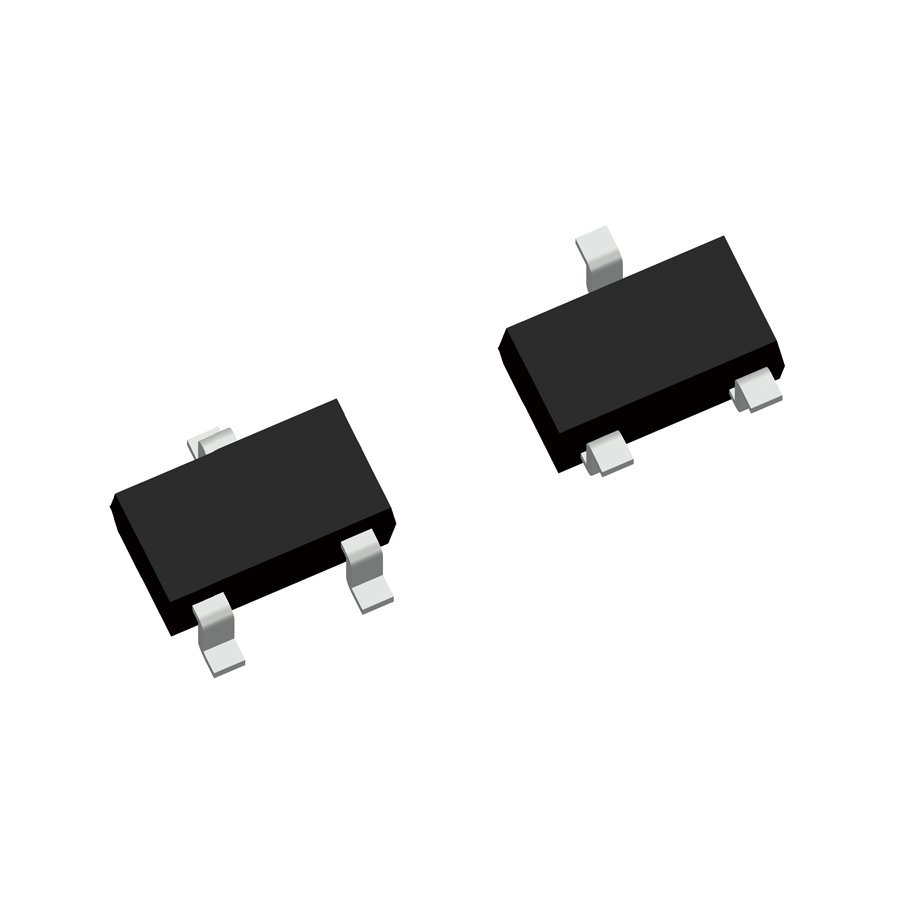

MOT2N10A3
Status：
Package Type：
Category：
Item Description：
Datasheet：
Product Attributes
| Category | Small Signal Mosfet |
| Supplier Device Package | SOT-23A-3L |
| VDss[V](min) | 100 |
| ID[A](25℃) | 2 |
| VGS(th)[V](max) | 3 |
| Rds(on) [ mohm] at Vgs=10V（TYP) | 260 |
| Rds(on) [ mohm] at Vgs=10V（MAX) | 320 |
| Rds(on) [ mohm] at Vgs=4.5V（TYP) | 320 |
| Rds(on) [ mohm] at Vgs=4.5V（MAX) | 380 |
| Rds(on) [ mohm] at Vgs=2.5V（TYP) | |
| Rds(on) [ mohm] at Vgs=2.5V（MAX) | |
| Qg [nC] at 10V Typ | 13 |
| Qgs [nC] Typ | 35 |
| Qgd [nC] Typ | 2 |
| Configuration | Single_N |
| Package Type | |
| Technology | |
| Mounting Type | |
| Operating Temperature | |
| FET Type | |
| Rds On (Max) @ Id, Vgs | |
| Vgs(th) (Max) @ Id | |
| Gate Charge (Qg) (Max) @ Vgs | |
| Vgs (Max) | |
| Input Capacitance (Ciss) (Max) @ Vds | |
| Power Dissipation (Max) |
Product Description
MOT2N10A3 is a 100V N MOSFET with an ID current of 2A. It is a very commonly used MOS product on the market. It has the characteristics of small size, light weight, stability and reliability, low on-state internal resistance and high current carrying capacity, and low price. It is widely used in power supply, signal processing, LED drive circuits, and is suitable for high performance, miniaturization and low power consumption fields.
Documents and Media
Datasheet
📑 Datasheet
Product Application Areas
Applicable to electronic cigarettes, electric toys, table lamps
