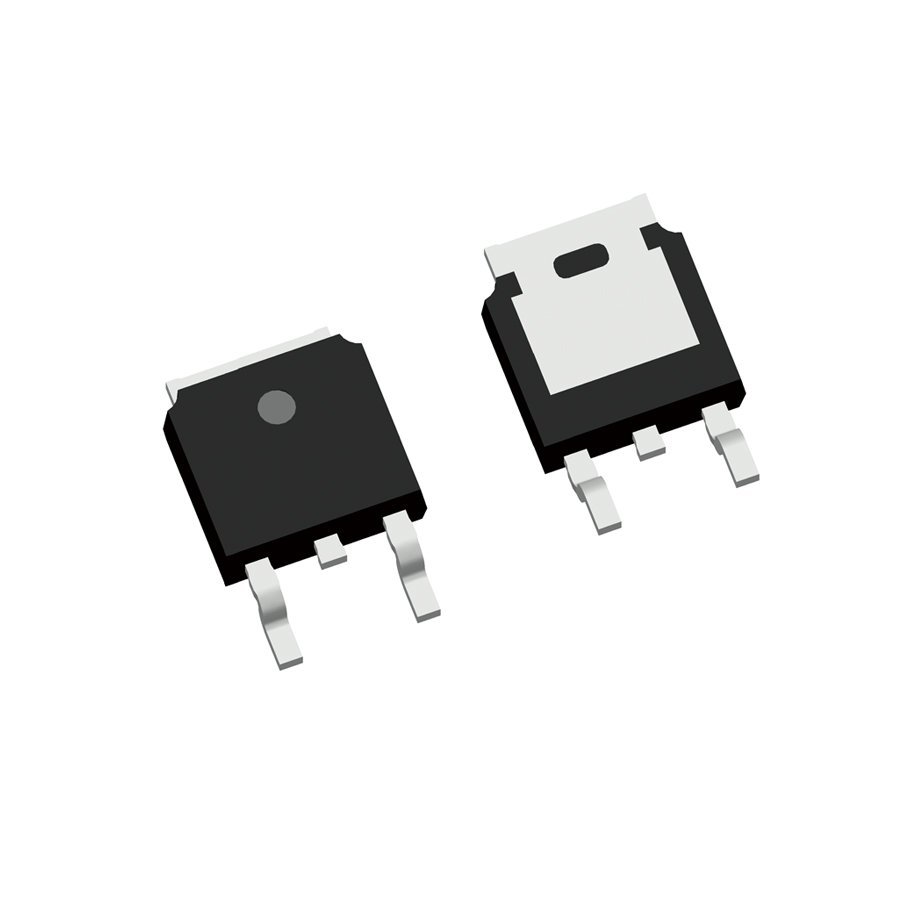

MOT20N03BD
Status：
Package Type：
Category：
Item Description：
Datasheet：
Product Attributes
| Category | Medium/Low Trench SGT MOS |
| Supplier Device Package | TO-252 |
| BVDSS | 30 |
| ID[A](25℃) | 20 |
| VGS(th)[V](max) | 2.5 |
| Rds(on) [ mohm] at Vgs=10V（TYP) | 9 |
| Rds(on) [ mohm] at Vgs=10V（MAX) | 12 |
| Rds(on) [ mohm] at Vgs=4.5V（TYP) | 14 |
| Rds(on) [ mohm] at Vgs=4.5V（MAX) | 17 |
| Rds(on) [ mohm] at Vgs=2.5V（TYP) | |
| Rds(on) [ mohm] at Vgs=2.5V（MAX) | |
| Qg [nC] at 10V Typ | 17 |
| Qgs [nC] Typ | 2.8 |
| Cargo Status | Active |
| Cargo Status | Active |
| Qgd [nC] Typ | 3.9 |
| Configuration | N |
| Package Type | Tape & Reel (TR) |
| Technology | MOSFET (Metal Oxide) |
| Mounting Type | Surface Mount |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Rds On (Max) @ Id, Vgs | 12mOhm @ 10A, 10V |
| Vgs(th) (Max) @ Id | 2.5V @ 250µA |
| Gate Charge (Qg) (Max) @ Vgs | 17 nC @ 10 V |
| Vgs (Max) | ±20V |
| Input Capacitance (Ciss) (Max) @ Vds | 734 pF @ 20 V |
| Power Dissipation (Max)(W) | 65 |
Product Description
MOT20N03BD is a low-voltage and high-power N-Channel Mosfet with VDS at 30V and ID at 20A. It has many benefits such as large package size, quick switching speed, low gate drive current, and high input impedance. Those highlight its cost-effective during the applications in vavious electronic devices, especially in situations where fast switching on-off and efficient energy conversion are required. It is mainly used for BMS battery protection, load switch, UPS applications.
Documents and Media
Datasheet
Product Application Areas
It is widely used in various application fields such as BMS, Motor drive, LED Lighting, Adapter, TV power supply and PC power supply etc.
