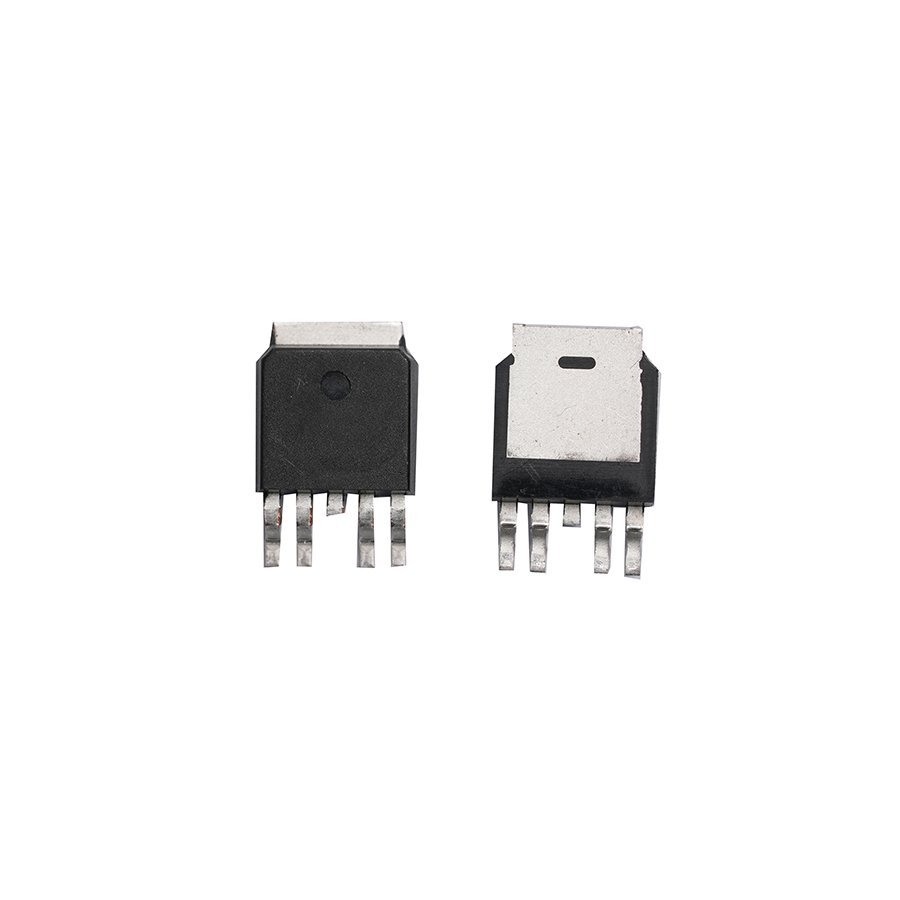

MOT4025D
It is widely used in various application fields such as motor drive, power bank, wireless charger and so on.
Product information
Specifications, documents and sourcing support for MOT4025D.
Technical specifications
Parametric data for product selection and design review.
- Cargo Status
- Active
- Supplier Device Package
- TO252-4L
- BVDSS
- 40
- ID[A](25℃)
- 28
- VGS(th)[V](max)
- 2
- Rds(on) [ mohm] at Vgs=10V（TYP)
- 17
- Rds(on) [ mohm] at Vgs=10V（MAX)
- 20
MOT4025D
Review electrical characteristics, package drawings and test conditions.
Overview & applications
Product positioning and recommended use cases.
MOSFET N+P 28V 40A 17 TO252-4L
MOT4025D is a high power N+P dual channel Mosfet with VDS at 40V/-40V and ID at 28A/-15A. It is a customized MOSFET with many benefits such as large package size, low on-state resistance, low gate charge, high current carrying capacity, and cost-effective. The Mosfet is mainly used in motor drive, power bank, wireless charger and so on.
Cross reference
Common market parts that may be evaluated against this MOT device.
| Manufacturer | Market part number | MOT part number |
|---|---|---|
| onsemi（原Fairchild） | FDS6690A | MOT4025D |
| Nexperia | PSMN017-28YLDX | MOT4025D |
| Vishay | Si4976DY | MOT4025D |
| 扬杰科技（YJ） | YJD28NP17D | MOT4025D |
| 华润微（CRMC） | CRMC28NP17D | MOT4025D |
Cross references are a starting point for evaluation. Confirm electrical and package compatibility in the datasheets before design-in.
