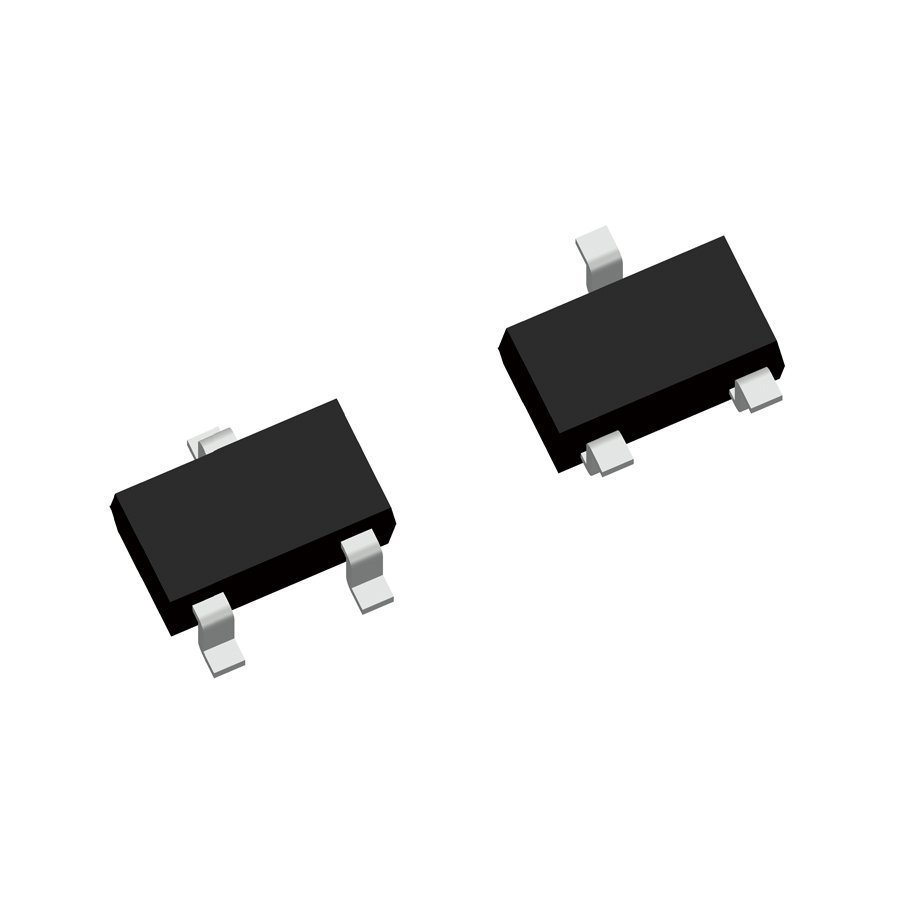

MOT2301A3
Status：
Package Type：
Category：
Item Description：
Datasheet：
Product Attributes
| Category | Small Signal Mosfet |
| Supplier Device Package | SOT-23A-3L |
| VDss[V](min) | -20 |
| ID[A](25℃) | -3 |
| VGS(th)[V](max) | -1 |
| Rds(on) [ mohm] at Vgs=10V（TYP) | |
| Rds(on) [ mohm] at Vgs=10V（MAX) | |
| Rds(on) [ mohm] at Vgs=4.5V（TYP) | 120 |
| Rds(on) [ mohm] at Vgs=4.5V（MAX) | 160 |
| Rds(on) [ mohm] at Vgs=2.5V（TYP) | 170 |
| Rds(on) [ mohm] at Vgs=2.5V（MAX) | 230 |
| Qg [nC] at 10V Typ | 5.8 |
| Qgs [nC] Typ | 0.85 |
| Qgd [nC] Typ | 1.7 |
| Configuration | Single_P |
| Package Type | |
| Technology | |
| Mounting Type | |
| Operating Temperature | |
| FET Type | |
| Rds On (Max) @ Id, Vgs | |
| Vgs(th) (Max) @ Id | |
| Gate Charge (Qg) (Max) @ Vgs | |
| Vgs (Max) | |
| Input Capacitance (Ciss) (Max) @ Vds | |
| Power Dissipation (Max) |
Product Description
Documents and Media
Datasheet
📑 Datasheet
