MOT2301AB2
Suitable for load switching, portable devices, DC/DC converters, LED drivers and compact power management.
Product information
Specifications, documents and sourcing support for MOT2301AB2.
Technical specifications
Parametric data for product selection and design review.
- Cargo Status
- Active
- Supplier Device Package
- SOT-23
- VDss[V](min)
- -20
- ID[A](25℃)
- -3
- VGS(th)[V](max)
- -1
- Rds(on) [ mohm] at Vgs=4.5V（TYP)
- 80
- Rds(on) [ mohm] at Vgs=4.5V（MAX)
- 120
- Rds(on) [ mohm] at Vgs=2.5V（TYP)
- 120
- Rds(on) [ mohm] at Vgs=2.5V（MAX)
- 160
- Qg [nC] at 10V Typ
- 5.8
- Qgs [nC] Typ
- 0.85
- Qgd [nC] Typ
- 1.7
- Configuration
- Single_P
Overview & applications
Product positioning and recommended use cases.
MOSFET -20V -3A -1V SOT-23

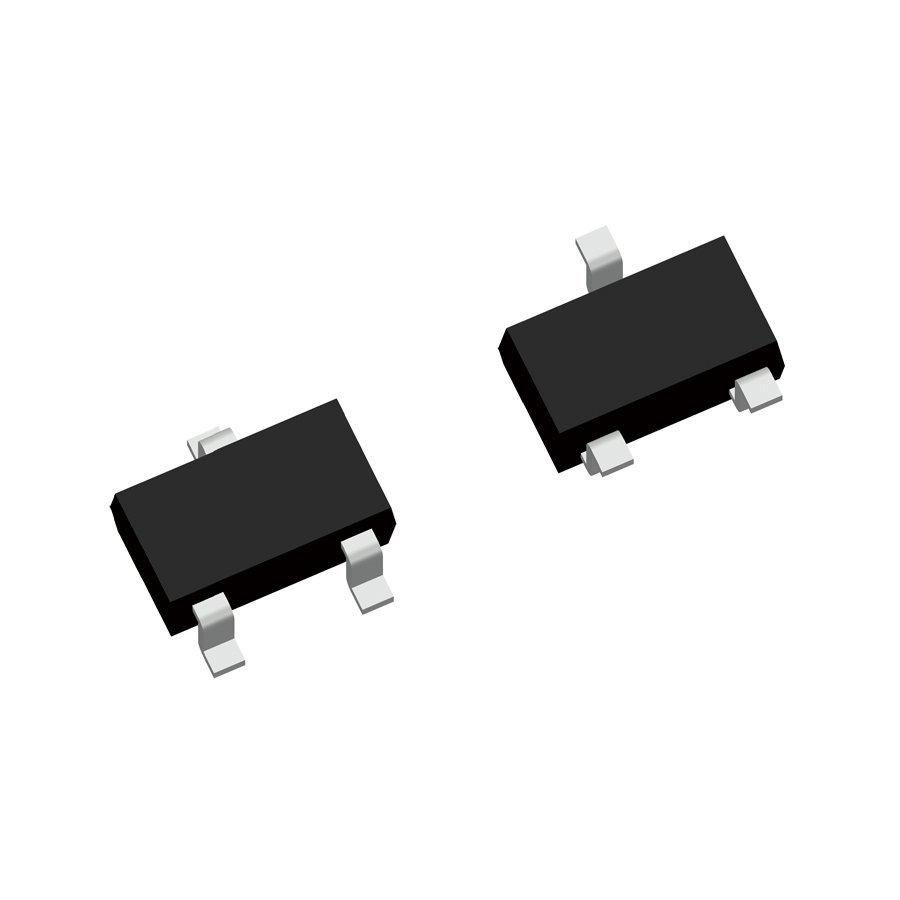

MOT2301AB2 is a P-channel MOSFET in SOT-23, rated at 20 V and 3 A. Low on-resistance and gate charge enable efficient switching in compact, battery-powered and DC/DC circuits.
Cross reference
Common market parts that may be evaluated against this MOT device.
| Manufacturer | Market part number | MOT part number |
|---|---|---|
| Nexperia | NX3008PBKX | MOT2301AB2 |
| onsemi（原Fairchild） | FDN358P | MOT2301AB2 |
| Vishay | SI2301ADS | MOT2301AB2 |
| Alpha&Omega (AOS) | AO3401A | MOT2301AB2 |
| Infineon（原IR） | IRLML5103TRPBF | MOT2301AB2 |
| ROHM | RQ3E020ATTCR | MOT2301AB2 |
| 扬杰科技（YJ） | YJB20P1AB2 | MOT2301AB2 |
| 华润微（CRMC） | CRMC2301AB2 | MOT2301AB2 |
| 长电科技（JCET） | JCET2301AB2 | MOT2301AB2 |
Cross references are a starting point for evaluation. Confirm electrical and package compatibility in the datasheets before design-in.
