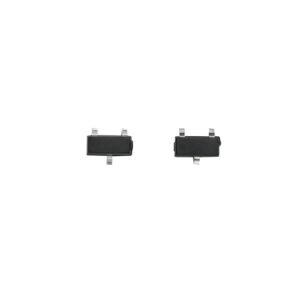

MOT2305CB2
Applicable to electronic cigarettes, electric toys, table lamps
Product information
Specifications, documents and sourcing support for MOT2305CB2.
Technical specifications
Parametric data for product selection and design review.
- Cargo Status
- Active
- Supplier Device Package
- SOT-23
- VDss[V](min)
- -20
- ID[A](25℃)
- -6
- VGS(th)[V](max)
- -1.2
- Rds(on) [ mohm] at Vgs=4.5V（TYP)
- 29
- Rds(on) [ mohm] at Vgs=4.5V（MAX)
- 35
- Rds(on) [ mohm] at Vgs=2.5V（TYP)
- 39
- Rds(on) [ mohm] at Vgs=2.5V（MAX)
- 46
- Qg [nC] at 10V Typ
- 12.5
- Qgs [nC] Typ
- 2.5
- Qgd [nC] Typ
- 1.8
- Configuration
- Single_P
MOT2305CB2 Datasheet
Review electrical characteristics, package drawings and test conditions.
Overview & applications
Product positioning and recommended use cases.
MOSFET -20V -6A -1.2V SOT-23
MOT2305CB2 is a -20V P MOS tube with an ID current of -6A. It is a very commonly used MOS product on the market. It has the characteristics of small size, light weight, stability and reliability, low on-state internal resistance and high current carrying capacity, and low price. It is widely used in power supplies, electronic cigarettes, motor drives, and LED drive circuits. It is particularly suitable for high performance, miniaturization and low power consumption fields.
Cross reference
Common market parts that may be evaluated against this MOT device.
| Manufacturer | Market part number | MOT part number |
|---|---|---|
| Nexperia | NX3010NK | MOT2305CB2 |
| onsemi（原Fairchild） | FDN5N020N | MOT2305CB2 |
| Vishay | SI2308CDS | MOT2305CB2 |
| Alpha&Omega (AOS) | AO3420 | MOT2305CB2 |
| Infineon（原IR） | IRLML6344TRPBF | MOT2305CB2 |
| 扬杰科技（YJ） | YJB20N5CB2 | MOT2305CB2 |
| 华润微（CRMC） | CRMC2305CB2 | MOT2305CB2 |
Cross references are a starting point for evaluation. Confirm electrical and package compatibility in the datasheets before design-in.
