MOT3136AG
Suitable for load switching, PWM control, BMS, motor drives and efficient DC power management.
Product information
Specifications, documents and sourcing support for MOT3136AG.
Technical specifications
Parametric data for product selection and design review.
- Cargo Status
- Active

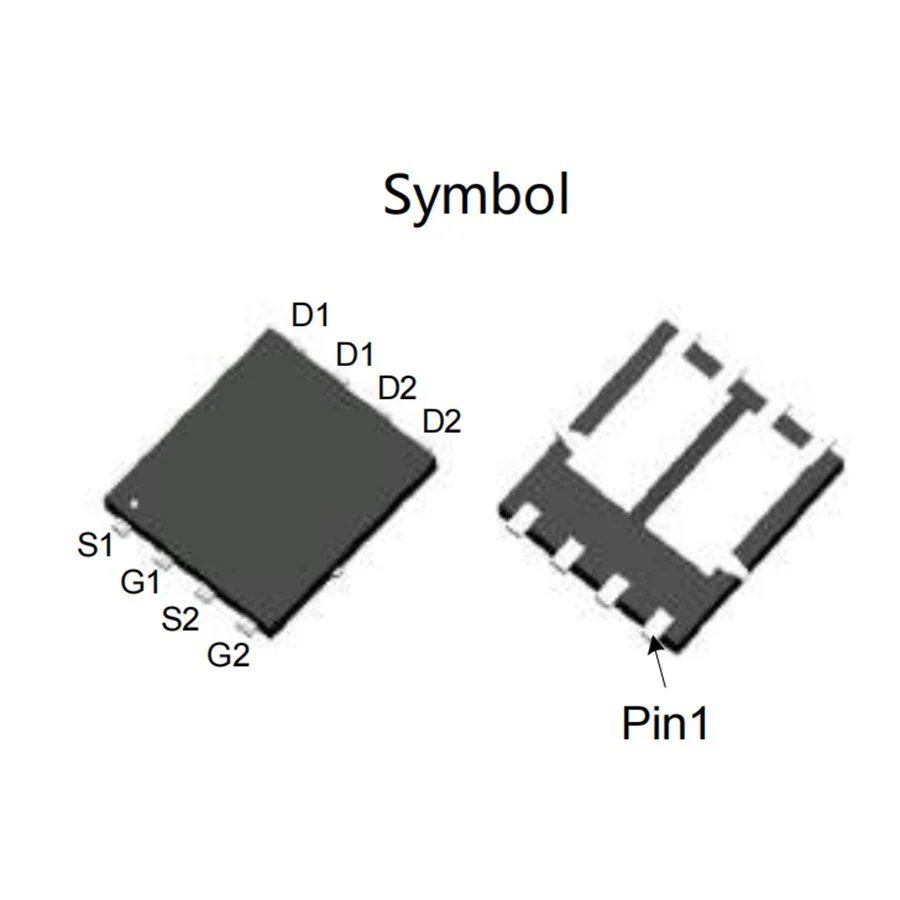

- Supplier Device Package
- PDFN5*6
- BVDSS
- 30
- ID[A](25℃)
- 120
- VGS(th)[V](max)
- 2.5
- Rds(on) [ mohm] at Vgs=10V（TYP)
- 3
- Rds(on) [ mohm] at Vgs=10V（MAX)
- 4.1
Overview & applications
Product positioning and recommended use cases.
MOSFET N 120V 30A 3 PDFN5*6
MOT3136AG is an N-channel trench MOSFET in PDFN5*6, rated at 30 V and 120 A. Low on-resistance and gate charge support efficient switching in motor-control, battery and power-management circuits.
Cross reference
Common market parts that may be evaluated against this MOT device.
| Manufacturer | Market part number | MOT part number |
|---|---|---|
| Alpha&Omega (AOS) | AON7516 | MOT3136AG |
| Nexperia | PSMN3R0-120YLDX | MOT3136AG |
| 扬杰科技（YJ） | YJG120N03AG | MOT3136AG |
| 华润微（CRMC） | CRMC120N03AG | MOT3136AG |
Cross references are a starting point for evaluation. Confirm electrical and package compatibility in the datasheets before design-in.
