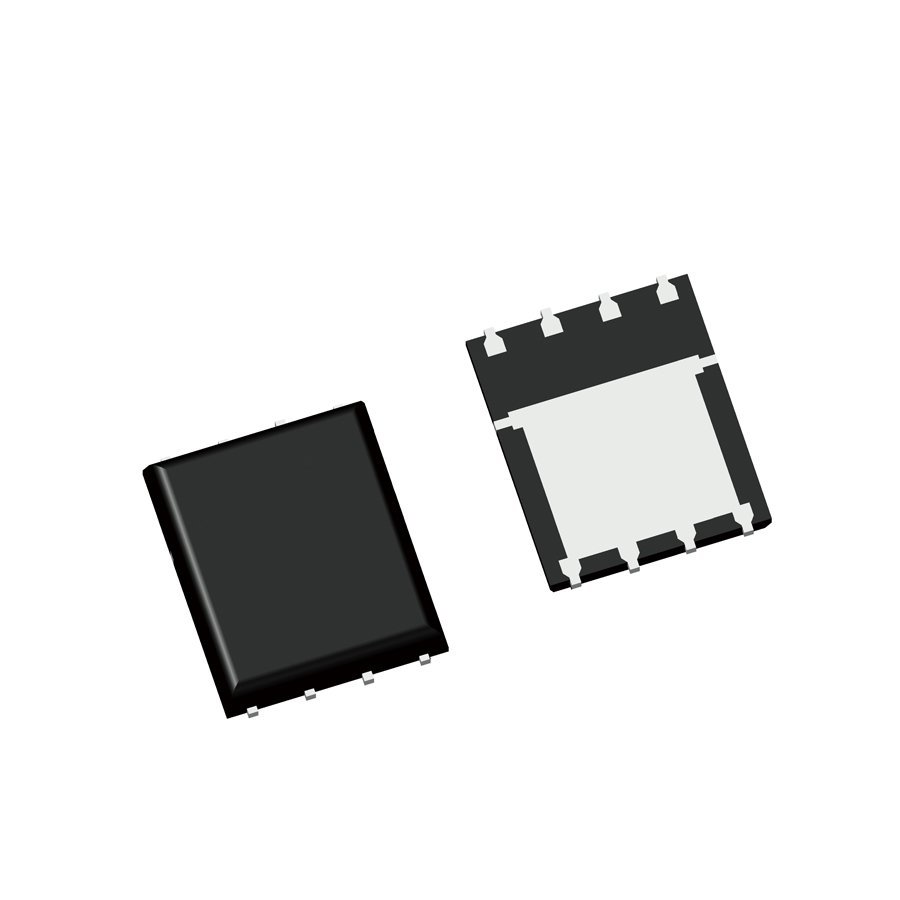

MOT3165G
Status：
Package Type：
Category：
Item Description：
Datasheet：
Product Attributes
| Category | Medium/Low Trench SGT MOS |
| Supplier Device Package | PDFN5*6 |
| BVDSS | 30 |
| ID[A](25℃) | 60 |
| VGS(th)[V](max) | 2.5 |
| Rds(on) [ mohm] at Vgs=10V（TYP) | 7.4 |
| Rds(on) [ mohm] at Vgs=10V（MAX) | 8.5 |
| Rds(on) [ mohm] at Vgs=4.5V（TYP) | 10 |
| Rds(on) [ mohm] at Vgs=4.5V（MAX) | 13 |
| Rds(on) [ mohm] at Vgs=2.5V（TYP) | |
| Rds(on) [ mohm] at Vgs=2.5V（MAX) | |
| Qg [nC] at 10V Typ | 32.3 |
| Qgs [nC] Typ | 4.9 |
| Cargo Status | Active |
| Cargo Status | Active |
| Qgd [nC] Typ | 6.9 |
| Configuration | N |
| Package Type | Tape & Reel (TR) |
| Technology | MOSFET (Metal Oxide) |
| Mounting Type | Surface Mount |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Rds On (Max) @ Id, Vgs | 8.5mOhm @ 15A, 10V |
| Vgs(th) (Max) @ Id | 2.5V @ 250µA |
| Gate Charge (Qg) (Max) @ Vgs | 32.3 nC @ 10 V |
| Vgs (Max) | ±20V |
| Input Capacitance (Ciss) (Max) @ Vds | 1166 pF @ 20 V |
| Power Dissipation (Max)(W) | 60 |
Product Description
MOT3165G is a low-voltage and high-power N-Channel Mosfet with VDS at 30V and ID at 65A. The MOSFET is with low RDS(on), PDFN5x6 large package, large ID current, and low Qg(nC), and cost-effective. It is widely used for BMS protection board, DC power supplies, and UPS, etc.
Documents and Media
Datasheet
Product Application Areas
It is widely used in various application fields such as BMS, Motor drive, LED Lighting, Adapter, TV power supply and PC power supply etc.
