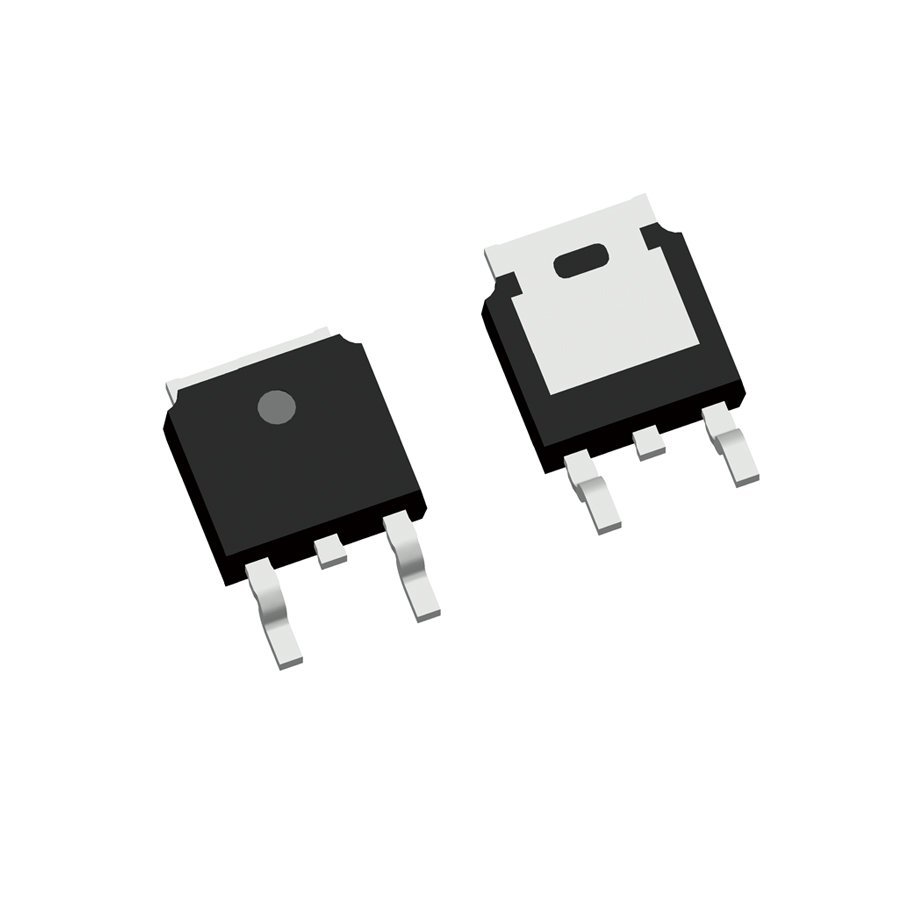

MOT80P03D
Status：
Package Type：
Category：
Item Description：
Datasheet：
Product Attributes
| Category | Medium/Low Trench SGT MOS |
| Supplier Device Package | TO-252 |
| BVDSS | -30 |
| ID[A](25℃) | -80 |
| VGS(th)[V](max) | 2.5 |
| Rds(on) [ mohm] at Vgs=10V（TYP) | 5 |
| Rds(on) [ mohm] at Vgs=10V（MAX) | 6 |
| Rds(on) [ mohm] at Vgs=4.5V（TYP) | 6.6 |
| Rds(on) [ mohm] at Vgs=4.5V（MAX) | 8 |
| Rds(on) [ mohm] at Vgs=2.5V（TYP) | |
| Rds(on) [ mohm] at Vgs=2.5V（MAX) | |
| Qg [nC] at 10V Typ | 125 |
| Qgs [nC] Typ | 26 |
| Cargo Status | Active |
| Cargo Status | Active |
| Qgd [nC] Typ | 20 |
| Configuration | P |
| Package Type | Tape & Reel (TR) |
| Technology | MOSFET (Metal Oxide) |
| Mounting Type | Surface Mount |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Rds On (Max) @ Id, Vgs | 6mOhm @ 20A, 10V |
| Vgs(th) (Max) @ Id | 2.5V @ 250µA |
| Gate Charge (Qg) (Max) @ Vgs | 125 nC @ 10 V |
| Vgs (Max) | ±20V |
| Input Capacitance (Ciss) (Max) @ Vds | 3300 pF @ 20 V |
| Power Dissipation (Max)(W) | 65 |
Product Description
MOT80P03D is a high-power P-Channel Mosfet with VDS at -30V and ID at -80A. It has many benefits such as large package size, quick switching speed, low RDS(on), low gate drive current, and high input impedance. Those highlight its cost-effective during the applications in vavious electronic devices, especially in situations where fast switching on-off and efficient energy conversion are required. It is mainly used in TV set-top box and high-power frequency conversion products.
Documents and Media
Datasheet
Product Application Areas
It is widely used in various application fields such as BMS, Motor drive, LED Lighting, Adapter, TV power supply and PC power supply etc.
