MOT3410A3
Suitable for load switching, portable devices, DC/DC converters, LED drivers and compact power management.
Product information
Specifications, documents and sourcing support for MOT3410A3.
Technical specifications
Parametric data for product selection and design review.
- Cargo Status
- Active
- Supplier Device Package
- SOT-23A-3L
- VDss[V](min)
- 30
- ID[A](25℃)
- 13
- VGS(th)[V](max)
- 1.4
- Rds(on) [ mohm] at Vgs=10V（TYP)
- 11
- Rds(on) [ mohm] at Vgs=10V（MAX)
- 15
- Rds(on) [ mohm] at Vgs=4.5V（TYP)
- 18
- Rds(on) [ mohm] at Vgs=4.5V（MAX)
- 25
- Qg [nC] at 10V Typ
- 9.8
- Qgs [nC] Typ
- 4.2
- Qgd [nC] Typ
- 3.6
- Configuration
- Single_N
Overview & applications
Product positioning and recommended use cases.

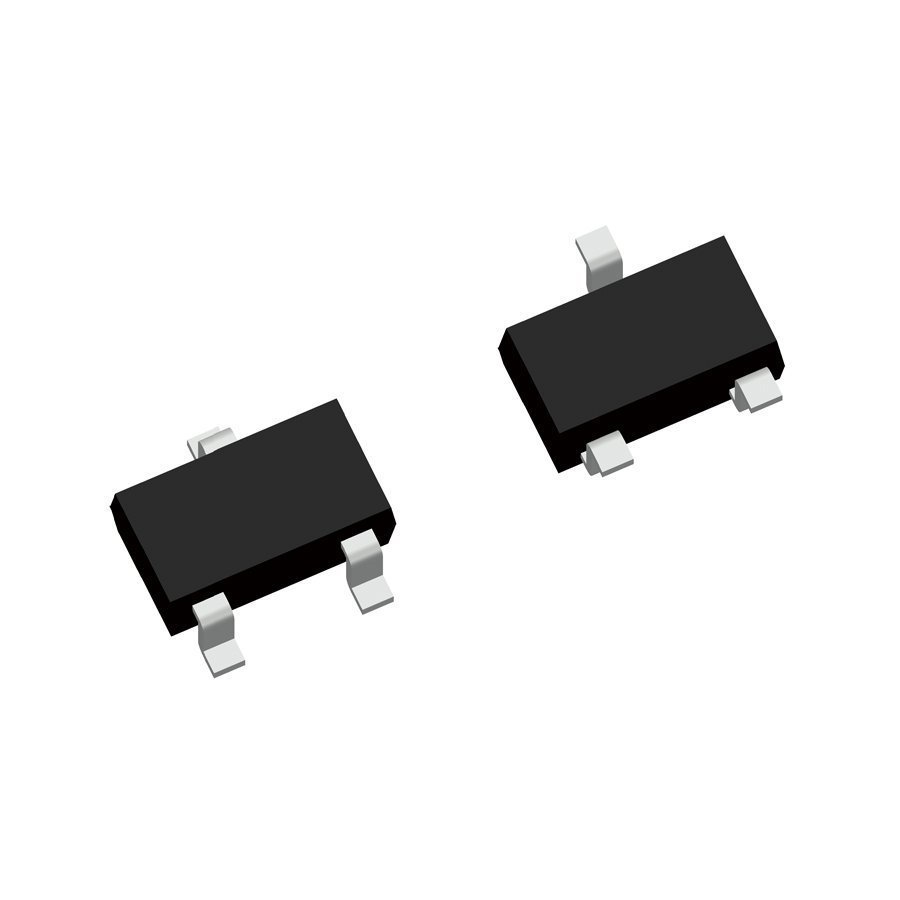

MOSFET 30V 13A 1.4V SOT-23A-3L
MOT3410A3 is an N-channel MOSFET in SOT-23A-3L, rated at 30 V and 13 A. Low on-resistance and gate charge enable efficient switching in compact, battery-powered and DC/DC circuits.
Cross reference
Common market parts that may be evaluated against this MOT device.
| Manufacturer | Market part number | MOT part number |
|---|---|---|
| Nexperia | NX3010PBK | MOT3410A3 |
| onsemi（原Fairchild） | FDN5N020N | MOT3410A3 |
| Vishay | SI2333DS | MOT3410A3 |
| Alpha&Omega (AOS) | AO3400 | MOT3410A3 |
| ROHM | RQ3E015GTTCR | MOT3410A3 |
| 扬杰科技（YJ） | YJB30N10A3 | MOT3410A3 |
| 华润微（CRMC） | CRMC3410A3 | MOT3410A3 |
| 长电科技（JCET） | JCET3410A3 | MOT3410A3 |
Cross references are a starting point for evaluation. Confirm electrical and package compatibility in the datasheets before design-in.
