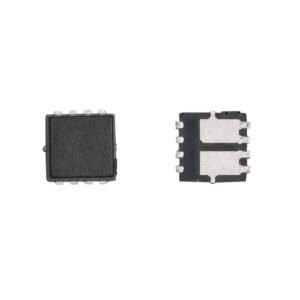

MOT3817J
It is widely used for various switching mode power supplies.
Product information
Specifications, documents and sourcing support for MOT3817J.
Technical specifications
Parametric data for product selection and design review.
- Cargo Status
- Active
- Supplier Device Package
- PDFN3*3
- BVDSS
- -30
- ID[A](25℃)
- -20
- VGS(th)[V](max)
- -2.5
- Rds(on) [ mohm] at Vgs=10V（TYP)
- 16
- Rds(on) [ mohm] at Vgs=10V（MAX)
- 25
MOT3817J
Review electrical characteristics, package drawings and test conditions.
Overview & applications
Product positioning and recommended use cases.
MOSFET P+P -20V -30A 16 PDFN3*3
MOT3817J is a dual P+P channel Mosfet with VDS at -30V/-30V and ID at -11A/-11A. The MOSFET is with low RDS(on), PDFN3X3 package, low gate charge, high current carrying capacity, and cost-effective. The Mosfet is mainly used for power supply control, motor drive, ect.
Cross reference
Common market parts that may be evaluated against this MOT device.
| Manufacturer | Market part number | MOT part number |
|---|---|---|
| Alpha&Omega (AOS) | AON7418 | MOT3817J |
| 扬杰科技（YJ） | YJJ20PP16J | MOT3817J |
| 华润微（CRMC） | CRMC20PP16J | MOT3817J |
Cross references are a starting point for evaluation. Confirm electrical and package compatibility in the datasheets before design-in.
