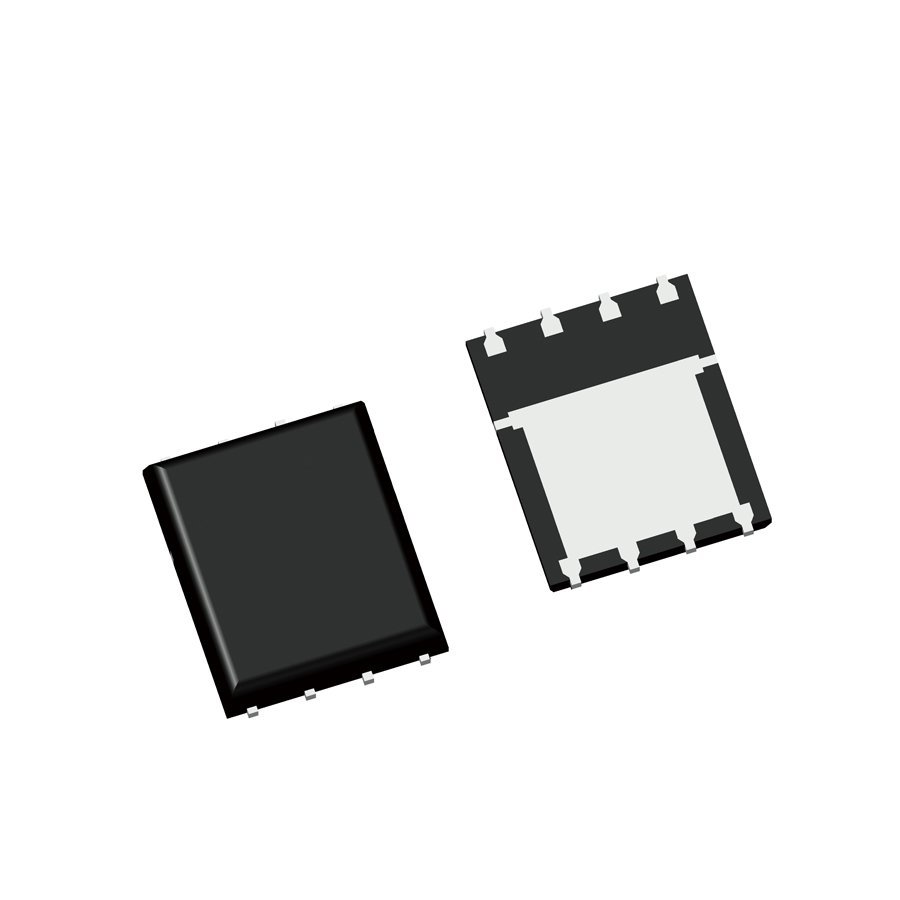

MOT4124G
It is widely used in various application fields such as computer and laptop, and storage battery etc.
Product information
Specifications, documents and sourcing support for MOT4124G.
Technical specifications
Parametric data for product selection and design review.
- Cargo Status
- Active
- Supplier Device Package
- PDFN5*6
- BVDSS
- 40
- ID[A](25℃)
- 100
- VGS(th)[V](max)
- 2.5
- Rds(on) [ mohm] at Vgs=10V（TYP)
- 1.9
- Rds(on) [ mohm] at Vgs=10V（MAX)
- 2.4
MOT4124G
Review electrical characteristics, package drawings and test conditions.
Overview & applications
Product positioning and recommended use cases.
MOSFET N 100V 40A 1.9 PDFN5*6
MOT4124G is a low-voltage and high power N-Channel Mosfet with VDS at 40V and ID at 100A. The MOSFET is with PDFN5X6 package, low RDS(on), large ID current, and cost-effective. It is widely used for high-power DC power supplies.
Cross reference
Common market parts that may be evaluated against this MOT device.
| Manufacturer | Market part number | MOT part number |
|---|---|---|
| Alpha&Omega (AOS) | AON7504 | MOT4124G |
| Nexperia | PSMN1R9-100YLDX | MOT4124G |
| 扬杰科技（YJ） | YJG100N01G | MOT4124G |
| 华润微（CRMC） | CRMC100N01G | MOT4124G |
| 东海半导体（WXDH） | WNSC10N1GN | MOT4124G |
Cross references are a starting point for evaluation. Confirm electrical and package compatibility in the datasheets before design-in.
