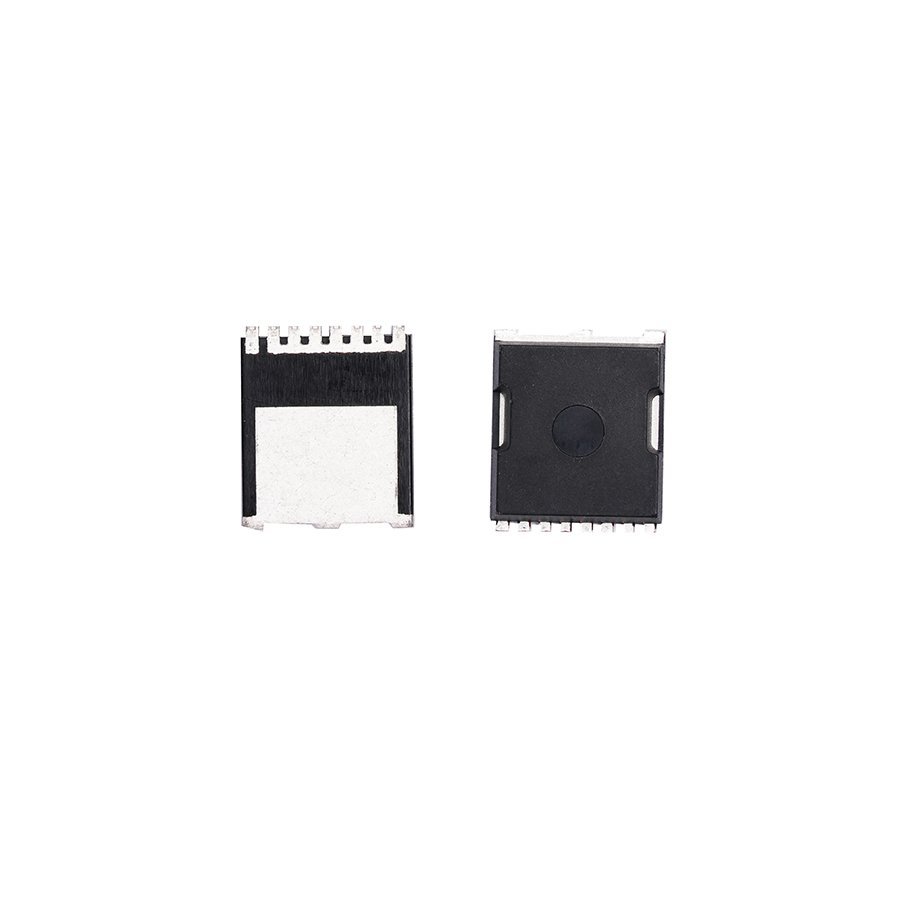

MOT4575HT
It is widely used for power tools, electric scooters, lawn mowers, outdoor energy storage cabinets ect.
Product information
Specifications, documents and sourcing support for MOT4575HT.
Technical specifications
Parametric data for product selection and design review.
- Supplier Device Package
- TOLL-8
- VDss[V](min)
- 40
- ID[A](25℃)
- 450
- VGS(th)[V](max)
- 4
- Rds(on) [ mohm] at Vgs=10V（TYP)
- 0.65
- Rds(on) [ mohm] at Vgs=10V（MAX)
- 0.75
- Qg [nC] at 10V Typ
- 107
- Qgs [nC] Typ
- 31
- Qgd [nC] Typ
- 27
Overview & applications
Product positioning and recommended use cases.
MOSFET N-CH 450V 40A 0.65 TOLL-8
MOT4575HT is a low-voltage and high power N-Ch Toll package Mosfet with VDS at 40V and ID at 450A. It has a large package size, quick switching speed, low gate drive current and high input impedance. The Mosfet is used in various electronic devices, especially in situations that require fast switching and efficient energy conversion. It has a wide range of applications and is cost-effective. It is mainly used in high-power products such as BMS power battery protection, energy storage protection board, and load switch.
