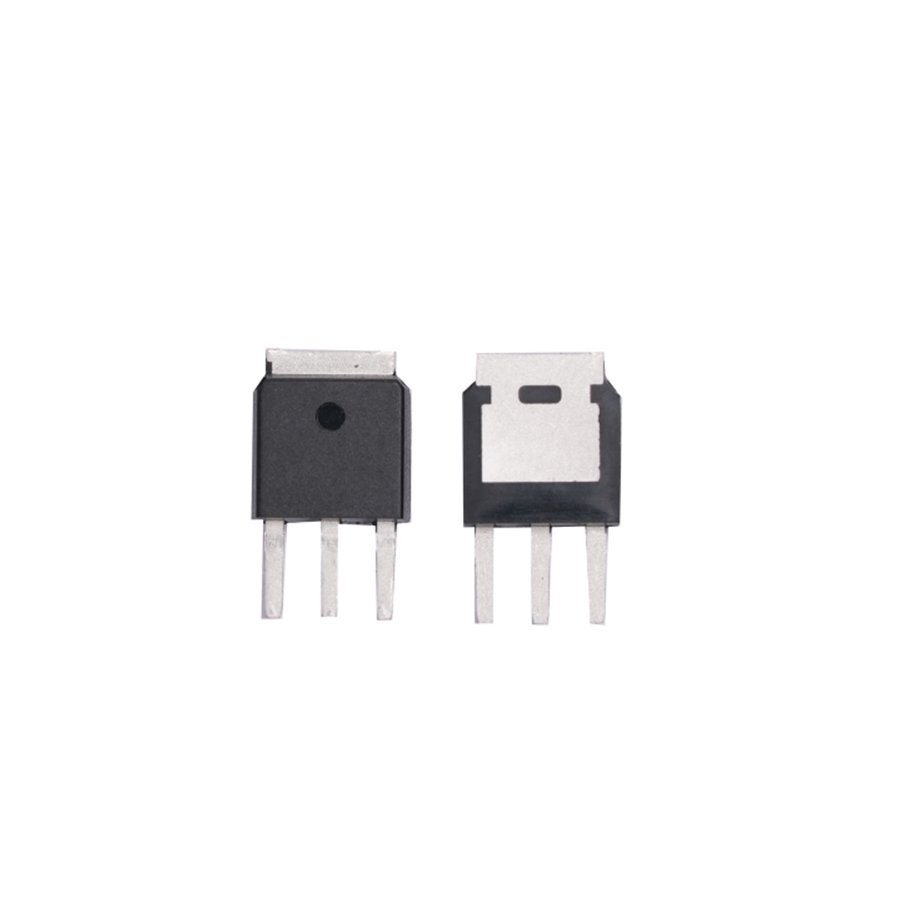

MOT60N02BC
It is widely used in various application fields such as BMS, Motor drive, LED Lighting, Adapter, TV power supply and PC power supply etc.
Product information
Specifications, documents and sourcing support for MOT60N02BC.
Technical specifications
Parametric data for product selection and design review.
- Cargo Status
- Active
- Supplier Device Package
- TO-251
- BVDSS
- 20
- ID[A](25℃)
- 60
- VGS(th)[V](max)
- 1.1
- Rds(on) [ mohm] at Vgs=10V（TYP)
- 5
- Rds(on) [ mohm] at Vgs=10V（MAX)
- 6.5
Overview & applications
Product positioning and recommended use cases.
MOSFET N 60V 20A 5 TO-251
MOT60N02BC is a low-voltage with high-power N- channel Mosfet with VDS at 20V and ID at 60A. Owing to its advanced SGT technology it gain many benefits such as super low RDS(on), low Qg(nC) and gate voltage, low VGS(th) , and cost-effective. The Mosfet is mainly used for LED lightings, and DC switching power supplies, BMS battery protection boards,etc.
Cross reference
Common market parts that may be evaluated against this MOT device.
| Manufacturer | Market part number | MOT part number |
|---|---|---|
| onsemi（原Fairchild） | FDD5N060B | MOT60N02BC |
| Nexperia | PSMN5R0-60YLD | MOT60N02BC |
| Vishay | Si7850DP | MOT60N02BC |
| 扬杰科技（YJ） | YJC60N02BC | MOT60N02BC |
| 华润微（CRMC） | CRMC60N02BC | MOT60N02BC |
| 东海半导体（WXDH） | WNSC6005TN | MOT60N02BC |
Cross references are a starting point for evaluation. Confirm electrical and package compatibility in the datasheets before design-in.
